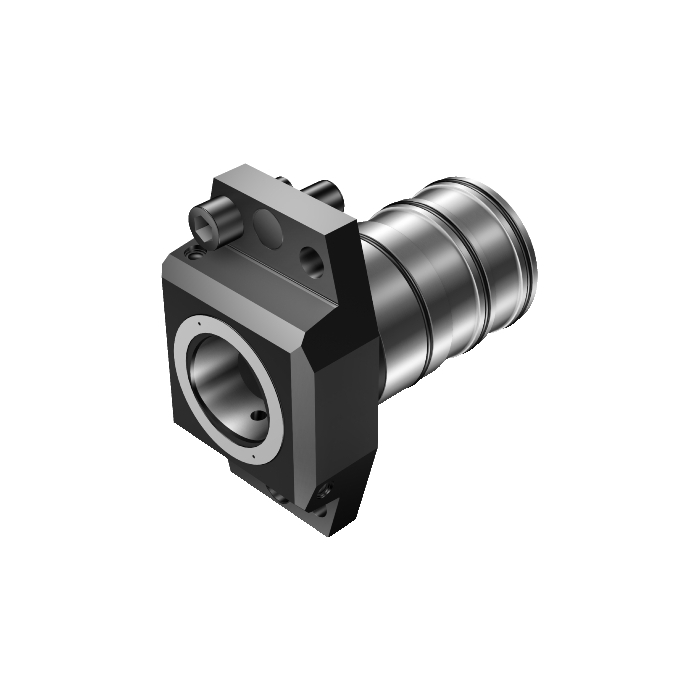

Sandvik Coromant C5-NC5010-00035 Hydraulic clamping unit
R 53 246,15
inc. vat
In stock
SKU
5727945
Hydraulic clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Hydraulic clamping unit
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 35mm |
| WT - Weight Of Item | 2.59kg |
| OAL - Overall Length | 127mm |
| OHX - Maximum Overhang | 35mm |
| LSC - Clamping Length | 88mm |
| DMIN - Minimum Bore Diameter | 300mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| OAH - Overall Height | 112mm |
| OAW - Overall Width | 64mm |
| HTB - Body Height | 70mm |
| ORDCODE | C5-NC5010-00035 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G5500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0500_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:18:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | N |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | False |
