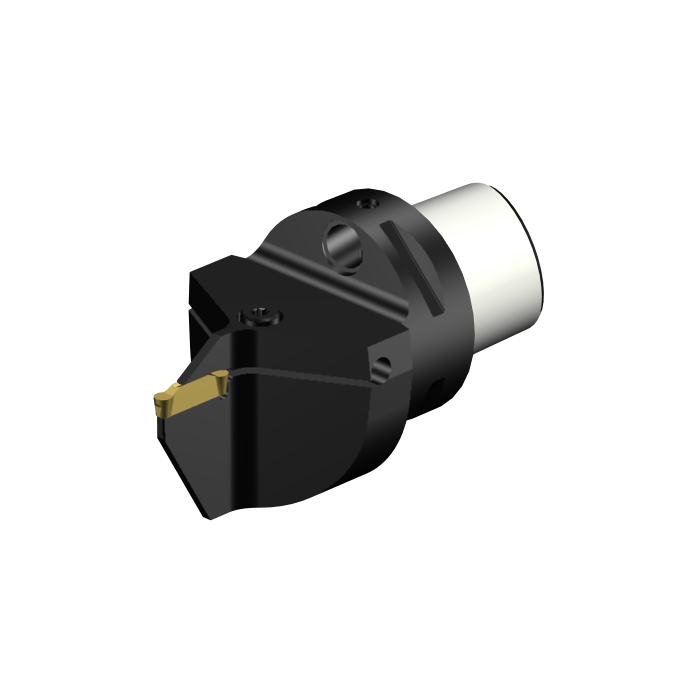

Sandvik Coromant C5-NF123G20-00070B CoroCut™ 1-2 cutting unit for parting and grooving

Name: Sandvik Coromant C5-NF123G20-00070B CoroCut™ 1-2 cutting unit for parting and grooving
SKU: 5727929
Price: 5463.65 ZAR
Availability: OutOfStock

Be the first to review this product

R 5 463,65 inc. vat

Out of stock

SKU

5727929

CoroCut® 1-2 cutting unit for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 cutting unit for parting and grooving

More Information

More Information
CP - Coolant Pressure	4000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	70mm
TQ - Torque	5Nm
WT - Weight Of Item	0.723kg
OAL - Overall Length	100mm
OHX - Maximum Overhang	70mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	2mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.3321mm
CW - Cutting Width	4mm
CDX - Cutting Depth Maximum	20mm
ORDCODE	C5-NF123G20-00070B
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	5
BMC - Body Material Code	1
CHANGEDATE	2022-07-05 15:22:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCG2_6
Hand	N
MIID - Master Insert Identification	N123G2-0400- RM
SSC - Insert Seat Size Code	G
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
