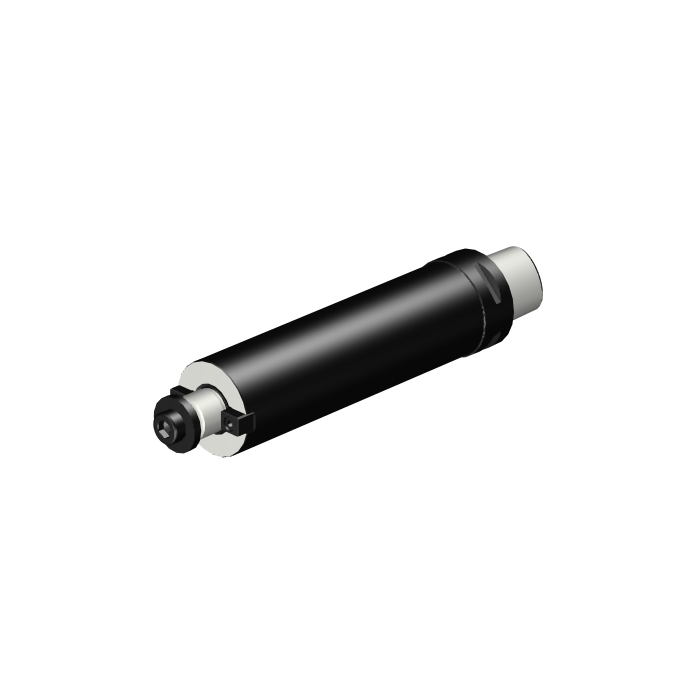

Sandvik Coromant C5-Q22D-048-180 Coromant Capto™ to damped arbor adaptor
R 62 946,40
inc. vat
In stock
SKU
7092071
Coromant Capto® to damped arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to damped arbor adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 22mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 180mm |
| BD - Body Diameter | 50mm |
| LB - Body Length | 180mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 45Nm |
| RPMX - Rotational Speed Maximum | 140001/min |
| WT - Weight Of Item | 3.2kg |
| OAL - Overall Length | 210mm |
| OHX - Maximum Overhang | 180mm |
| LSC - Clamping Length | 16mm |
| ORDCODE | C5-Q22D-048-180 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA1AB1_G2200_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-23 17:49:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | True |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
