R 25 845,10
inc. vat
In stock
SKU
5728496

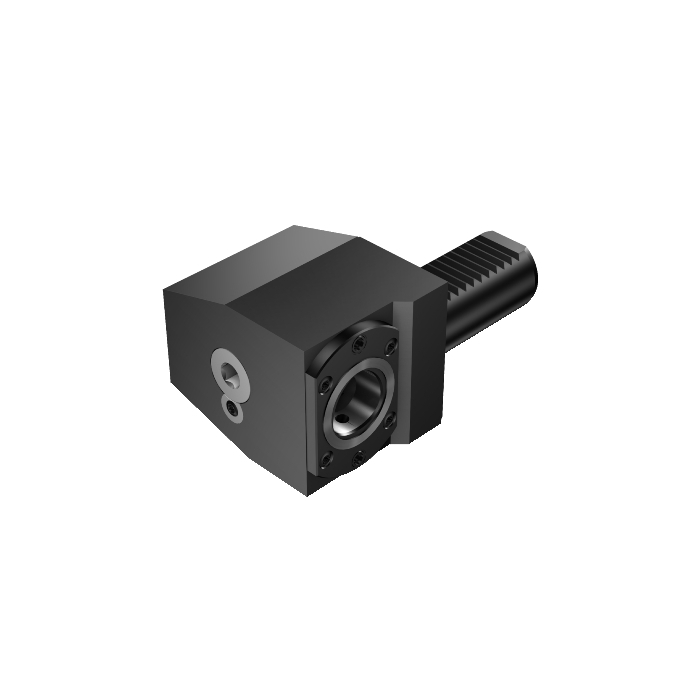

VDI to Coromant Capto® clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
VDI to Coromant Capto® clamping unit
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 53mm |
TQ - Torque | 70Nm |
WT - Weight Of Item | 5.3kg |
OAL - Overall Length | 148mm |
OHX - Maximum Overhang | 53mm |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 40mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 85mm |
OAH - Overall Height | 82mm |
OAW - Overall Width | 99mm |
HRY - Lowest Point From Reference Plain | 41mm |
HTB - Body Height | 53mm |
ORDCODE | C5-RC2040-53040M |
ADINTMS - Adaptive Interface Machine Direction | M_ZYV01A_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0500_1 |
CNSC - Coolant Entry Style Code | 6 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-01 14:19:00.000 |
STDNO - Standard Number | ISO26623-2 |
Hand | R |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
