R 9 916,45
inc. vat
In stock
SKU
6798967

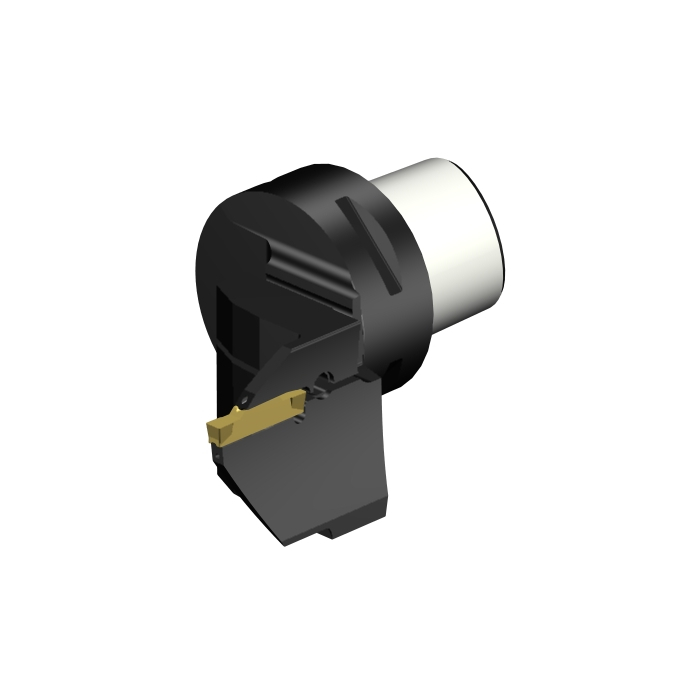

CoroCut® 1-2 cutting unit for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 cutting unit for face grooving
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 70mm |
WT - Weight Of Item | 624g |
OAL - Overall Length | 100mm |
OHX - Maximum Overhang | 70mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 33mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
CW - Cutting Width | 4mm |
CDX - Cutting Depth Maximum | 25mm |
DAXN - Minimum Axial Groove Outside Diameter | 100mm |
DAXX - Maximum Axial Groove Outside Diameter | 140mm |
ORDCODE | C5-RF123H25CE-092B |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-07-05 15:39:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCH2_5 |
Hand | R |
MIID - Master Insert Identification | N123H2-0400-0004-TF |
SSC - Insert Seat Size Code | H |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
