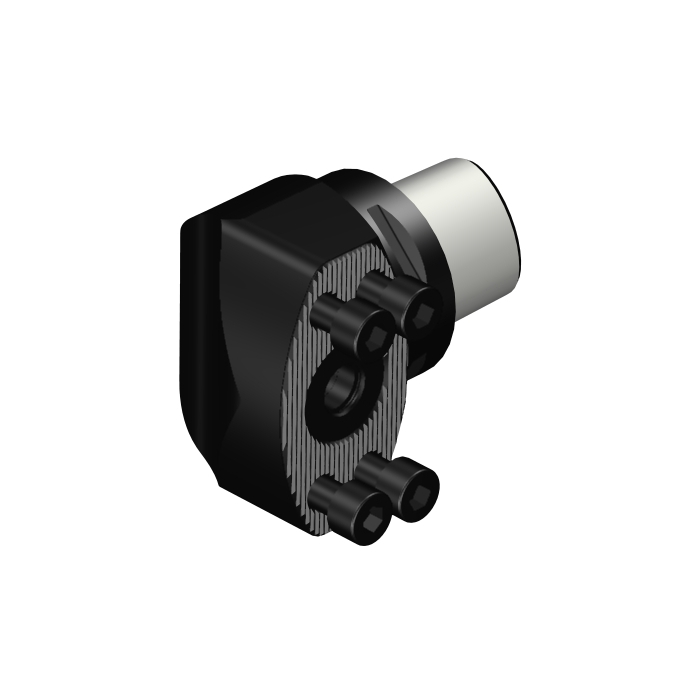

Sandvik Coromant C6-SL70-RF-043 Coromant Capto™ to CoroTurn™ SL70 adaptor
Next
Sandvik Coromant C5-570-40-RF-T Coromant Capto™ to CoroTurn™ SL adaptor
Previous
![Sandvik Coromant C6-SL70-RF-043 Coromant Capto™ to CoroTurn™ SL70 adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/544635c73/sandvik-coromant-c6-sl70-rf-043-coromant-captotm-to-coroturntm-sl70-adaptor.jpg)
![Sandvik Coromant C5-570-40-RF-T Coromant Capto™ to CoroTurn™ SL adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/544614c35/sandvik-coromant-c5-570-40-rf-t-coromant-captotm-to-coroturntm-sl-adaptor.jpg)
R 8 353,60
inc. vat
In stock
SKU
5957897
Coromant Capto® to CoroTurn® SL70 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® SL70 adaptor
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 43mm |
TQ - Torque | 30Nm |
WT - Weight Of Item | 1.334kg |
OAL - Overall Length | 93.25mm |
OHX - Maximum Overhang | 43mm |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 33mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 63.25mm |
WSC - Clamping Width | 70mm |
ORDCODE | C5-SL70-RF-043 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSA1_C0700_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-09 16:52:00.000 |
STDNO - Standard Number | ISO26623-1 |
Hand | R |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
