R 10 619,10
inc. vat
In stock
SKU
7096823

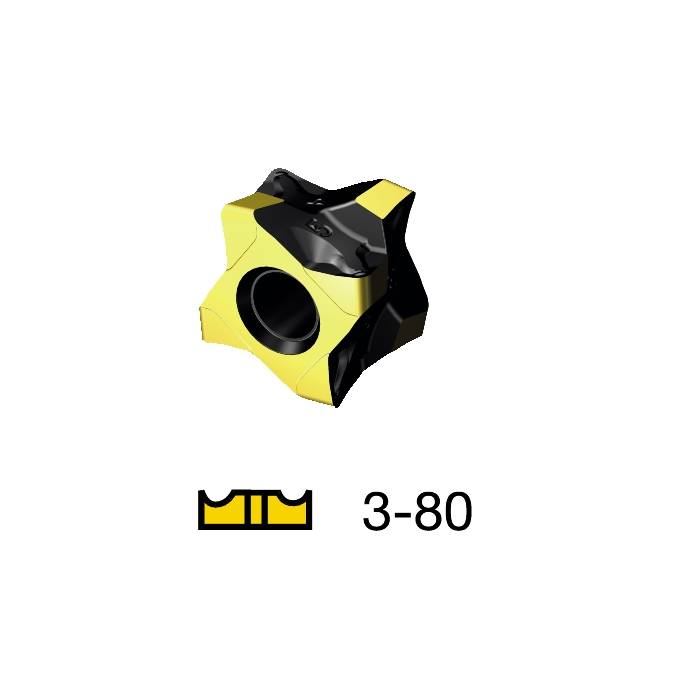

CoroTurn® 300 cutting unit for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 300 cutting unit for turning
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 44mm |
DCON - Connection Diameter | 63mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 115mm |
TQ - Torque | 4.5Nm |
WT - Weight Of Item | 2.049kg |
OAL - Overall Length | 153mm |
OHX - Maximum Overhang | 115mm |
KAPR - Tool Cutting Edge Angle | 95deg |
RMPX - Maximum Ramping Angle | 0deg |
DMIN - Minimum Bore Diameter | 250mm |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 45deg |
WF - Functional Width | 0.37mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | -5.5deg |
LAMS - Inclination Angle | -6.466deg |
AN - Clearance Angle Major | 0deg |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 11mm |
W1 - Insert Width | 10mm |
ORDCODE | C6-3-80-MN00115-10C |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0630_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 8 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-14 13:27:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | P |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_TJ1011_1 |
Hand | N |
MIID - Master Insert Identification | 3-80-101108 |
IFS - Insert Mounting Style Code | 2 |
SSC - Insert Seat Size Code | 10 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
