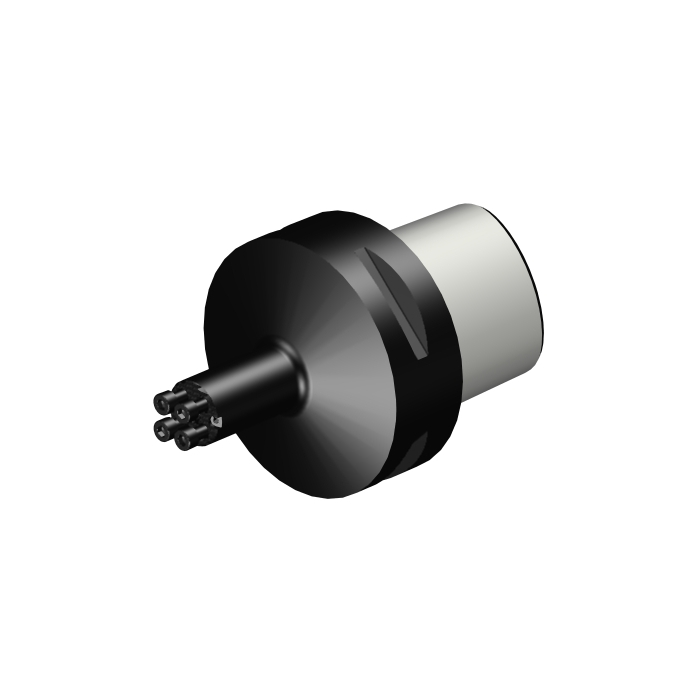

Sandvik Coromant C6-570-2C 16 056 Coromant Capto™ to CoroTurn™ SL adaptor

R 8 932,05 inc. vat
In stock
SKU
5729290
Coromant Capto® to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® SL adaptor
More Information
CP - Coolant Pressure 15000000Pa
DFC - Functional Diameter 44mm
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 56.3mm
BD - Body Diameter 16mm
LB - Body Length 25.7mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 2Nm
WT - Weight Of Item 852g
OAL - Overall Length 85.87mm
OHX - Maximum Overhang 56.3mm
BAWS - Workpiece Side Body Angle 0deg
OHN - Minimum Overhang 56.3mm
WF - Functional Width 0mm
HF - Functional Height 0mm
LPR - Protruding Length 56.3mm
ORDCODE C6-570-2C 16 056
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction W_SLHDSS_C0160_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 9
DCPS - Data Chip Provision Size 2
BMC - Body Material Code 1
CHANGEDATE 2022-05-04 07:45:00.000
STDNO - Standard Number ISO26623-1
Hand N
DPC - Damping Property False
DCP - Data Chip Provision True
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
