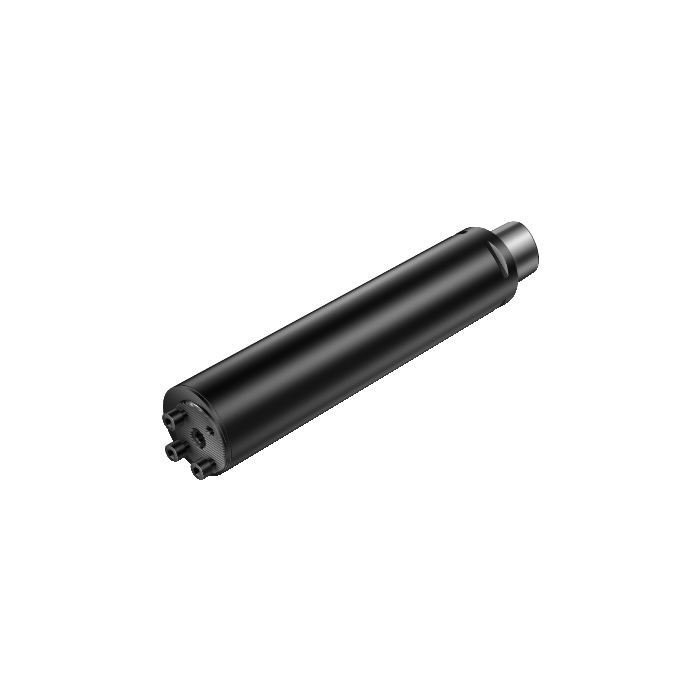

Sandvik Coromant C6-570-3C 60 295-40R Coromant Capto™ to CoroTurn™ SL damped adaptor

Name: Sandvik Coromant C6-570-3C 60 295-40R Coromant Capto™ to CoroTurn™ SL damped adaptor
SKU: 5729353
Price: 43065.20 ZAR
Availability: InStock

Be the first to review this product

R 43 065,20 inc. vat

In stock

SKU

5729353

Coromant Capto® to CoroTurn® SL damped adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to CoroTurn® SL damped adaptor

More Information

More Information
CP - Coolant Pressure	7000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	295mm
BD - Body Diameter	60mm
LB - Body Length	273mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	17Nm
WT - Weight Of Item	7.11kg
OAL - Overall Length	295mm
OHX - Maximum Overhang	295mm
BAWS - Workpiece Side Body Angle	0deg
OHN - Minimum Overhang	295mm
WF - Functional Width	10mm
HF - Functional Height	0mm
LPR - Protruding Length	295mm
ORDCODE	C6-570-3C 60 295-40R
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDSS_C0400_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-05-23 19:19:00.000
STDNO - Standard Number	ISO26623-1
Hand	R
DPC - Damping Property	True
DCP - Data Chip Provision	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
