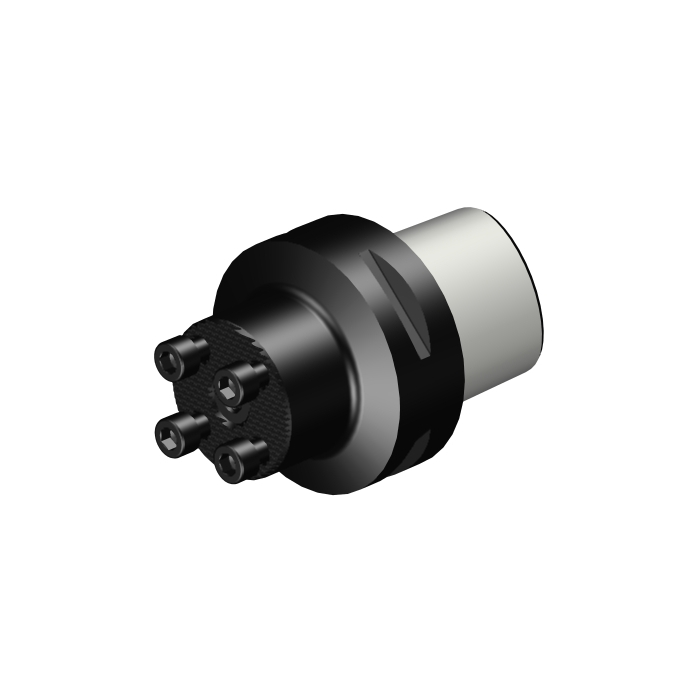

Sandvik Coromant C6-570-40-NG Coromant Capto™ to CoroTurn™ SL adaptor

Name: Sandvik Coromant C6-570-40-NG Coromant Capto™ to CoroTurn™ SL adaptor
SKU: 5729584
Price: 8006.30 ZAR
Availability: InStock

R 8 006,30 inc. vat

In stock

SKU

5729584

Coromant Capto® to CoroTurn® SL adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to CoroTurn® SL adaptor

More Information
CP - Coolant Pressure	15000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	47mm
BD - Body Diameter	40mm
LB - Body Length	16mm
TQ - Torque	17Nm
WT - Weight Of Item	1.022kg
OAL - Overall Length	85mm
OHX - Maximum Overhang	47mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	0mm
HF - Functional Height	0mm
LPR - Protruding Length	47mm
ORDCODE	C6-570-40-NG
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SLHDSS_C0400_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 07:46:00.000
STDNO - Standard Number	ISO26623-1
Hand	N
DPC - Damping Property	False
DCP - Data Chip Provision	True
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
