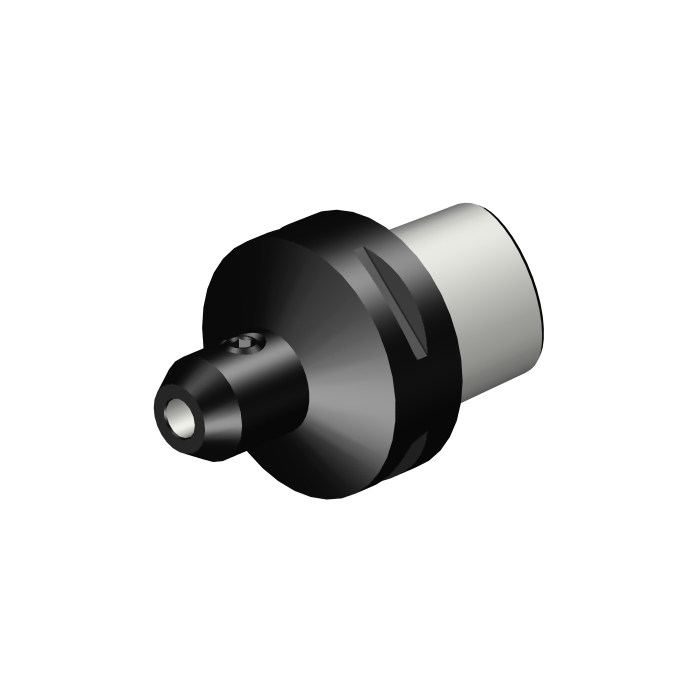

Sandvik Coromant C6-A391.20-09 060 Coromant Capto™ to Weldon adaptor
R 5 920,20
inc. vat
In stock
SKU
5729940
Coromant Capto® to Weldon adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to Weldon adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 44mm |
| DCON - Connection Diameter | 9.525mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 59.9948mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 60mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 8Nm |
| RPMX - Rotational Speed Maximum | 200001/min |
| WT - Weight Of Item | 934g |
| OAL - Overall Length | 97.9948mm |
| OHX - Maximum Overhang | 59.9948mm |
| LSC - Clamping Length | 43mm |
| ORDCODE | C6-A391.20-09 060 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLW_R3750_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-20 07:19:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
