Sandvik Coromant C6-CSSNL-45056-12-4 T-Max™ cutting unit for turning

Name: Sandvik Coromant C6-CSSNL-45056-12-4 T-Max™ cutting unit for turning
SKU: 5730295
Price: 6306.60 ZAR
Availability: OutOfStock

R 6 306,60 inc. vat

Out of stock

SKU

5730295

T-Max® cutting unit for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® cutting unit for turning

More Information
CP - Coolant Pressure	4000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	56mm
TQ - Torque	3.9Nm
WT - Weight Of Item	0.99kg
OAL - Overall Length	102.32mm
OHX - Maximum Overhang	56mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	190mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	45mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-8deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	0.79375mm
Insert Thickness	7.9375mm
LPR - Protruding Length	64.32mm
ORDCODE	C6-CSSNL-45056-12-4
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-07-05 15:30:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_SN1207_2
Hand	L

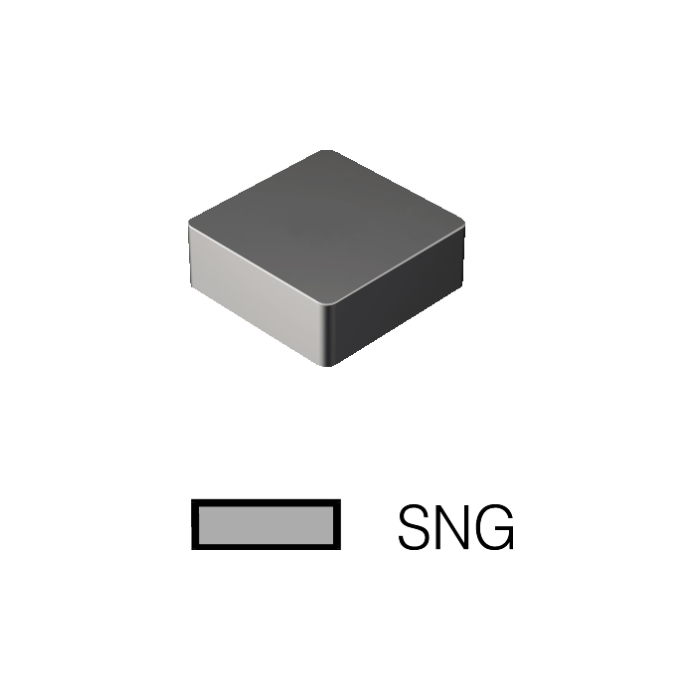

MIID - Master Insert Identification	SNGN 12 07 08
IFS - Insert Mounting Style Code	1
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
