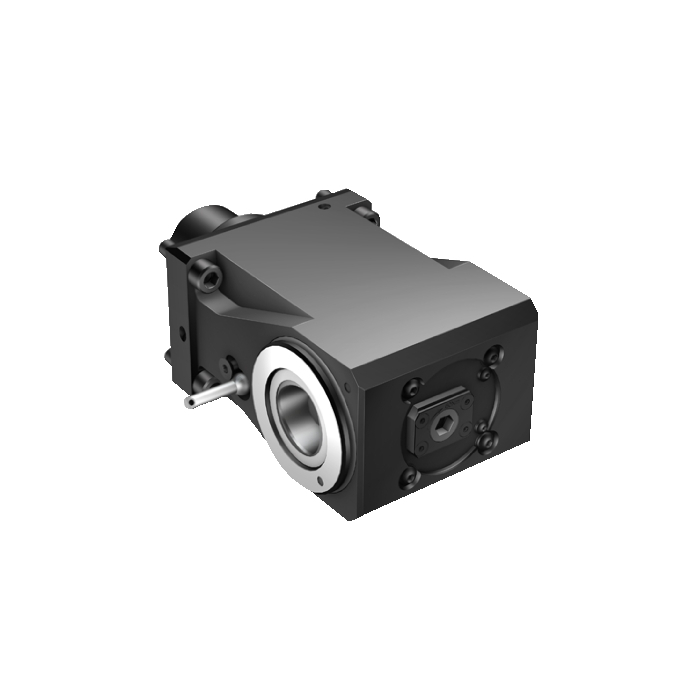

Sandvik Coromant C6-DNI-BT85A-I Driven tool holder for BMT-P turrets

R 150 146,30 inc. vat
In stock
SKU
6144293
Driven tool holder for BMT-P turrets
Reliable nationwide shipping
Delivery in 4 - 5 days
Driven tool holder for BMT-P turrets
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 44mm
DCON - Connection Diameter 63mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 85mm
TQ - Torque 75Nm
RPMX - Rotational Speed Maximum 30001/min
WT - Weight Of Item 23.61kg
OAL - Overall Length 281mm
OHX - Maximum Overhang 85mm
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 104mm
HF - Functional Height 0mm
LPR - Protruding Length 141mm
OAH - Overall Height 125mm
OAW - Overall Width 190mm
ORDCODE C6-DNI-BT85A-I
ADINTMS - Adaptive Interface Machine Direction M_FLC02BD_C085D_1
ADINTWS - Adaptive Interface Workpiece Direction W_CCS02_C0630_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2022-04-06 07:53:00.000
STDNO - Standard Number ISO26623-2
Hand N
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
RIDOP - Reversed Rotation Direction Output Side True
