Sandvik Coromant C6-DRSNR-45065-12 T-Max™ P cutting unit for turning

Name: Sandvik Coromant C6-DRSNR-45065-12 T-Max™ P cutting unit for turning
SKU: 5729772
Price: 5056.55 ZAR
Availability: InStock

R 5 056,55 inc. vat

In stock

SKU

5729772

T-Max® P cutting unit for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® P cutting unit for turning

More Information
CP - Coolant Pressure	4000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	65mm
TQ - Torque	3.9Nm
WT - Weight Of Item	0.992kg
OAL - Overall Length	103mm
OHX - Maximum Overhang	65mm
RMPX - Maximum Ramping Angle	40deg
DMIN - Minimum Bore Diameter	190mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	45mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-6deg
LAMS - Inclination Angle	-6deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	6.35mm
Insert Thickness	4.7625mm
ORDCODE	C6-DRSNR-45065-12
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-14 13:26:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_RN1204_1
Hand	R

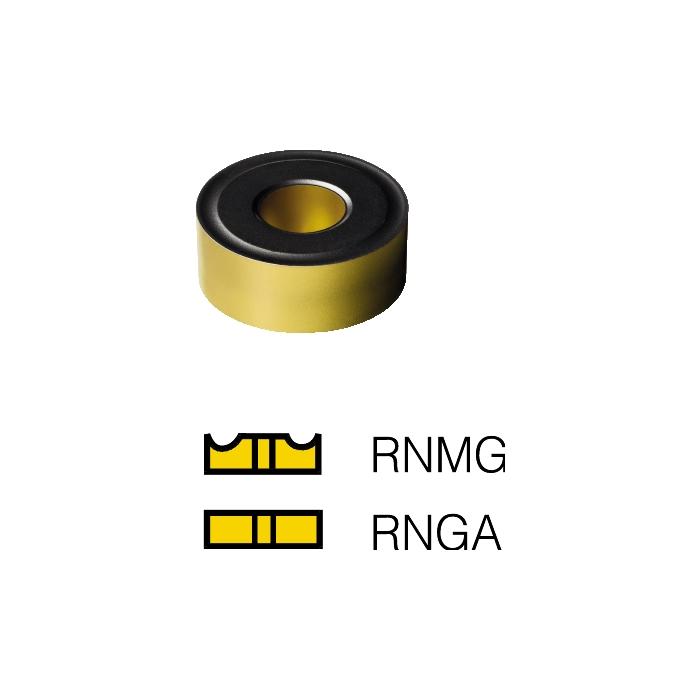

MIID - Master Insert Identification	RNMG 12 04 00
IFS - Insert Mounting Style Code	2
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
