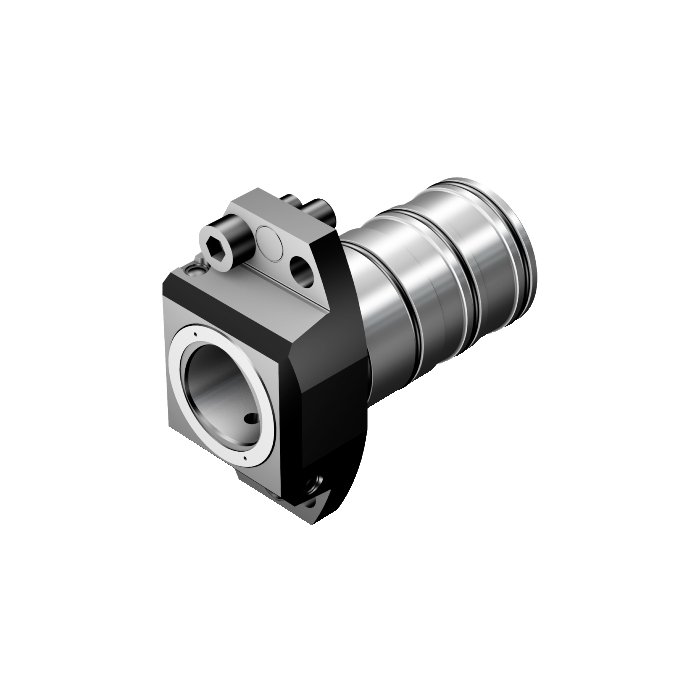

Sandvik Coromant C6-NC5300-00040 Hydraulic clamping unit
R 61 029,35
inc. vat
Out of stock
SKU
6679807
Hydraulic clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Hydraulic clamping unit
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 44mm |
| DCON - Connection Diameter | 63mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 40mm |
| WT - Weight Of Item | 4.807kg |
| OAL - Overall Length | 149mm |
| OHX - Maximum Overhang | 40mm |
| DMIN - Minimum Bore Diameter | 280mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| OAH - Overall Height | 143mm |
| OAW - Overall Width | 76mm |
| HTB - Body Height | 90mm |
| ORDCODE | C6-NC5300-00040 |
| ADINTMS - Adaptive Interface Machine Direction | M_FLC01_C1408_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0630_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:25:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | N |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
