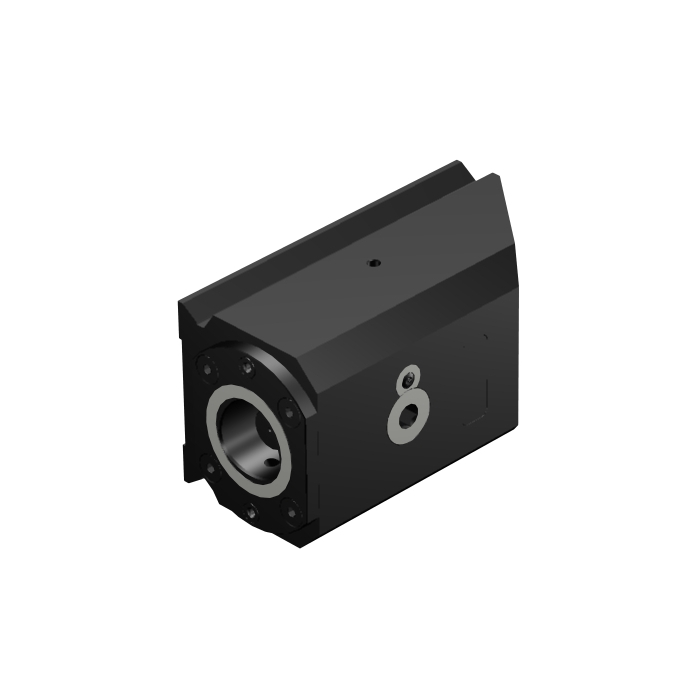

Sandvik Coromant C6-RC115-130L VDI to Coromant Capto™ clamping unit

Name: Sandvik Coromant C6-RC115-130L VDI to Coromant Capto™ clamping unit
SKU: 6144299
Price: 43751.75 ZAR
Availability: OutOfStock

R 43 751,75 inc. vat

Out of stock

SKU

6144299

VDI to Coromant Capto® clamping unit

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

VDI to Coromant Capto® clamping unit

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
TQ - Torque	90Nm
WT - Weight Of Item	15.681kg
OAL - Overall Length	102mm
OHX - Maximum Overhang	60mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	130mm
HF - Functional Height	0mm
LPR - Protruding Length	102mm
OAH - Overall Height	115mm
OAW - Overall Width	215mm
ORDCODE	C6-RC115-130L
ADINTMS - Adaptive Interface Machine Direction	M_PMD01_A1150_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0630_1
CNSC - Coolant Entry Style Code	2
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:22:00.000
STDNO - Standard Number	ISO26623-2
Hand	R
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
