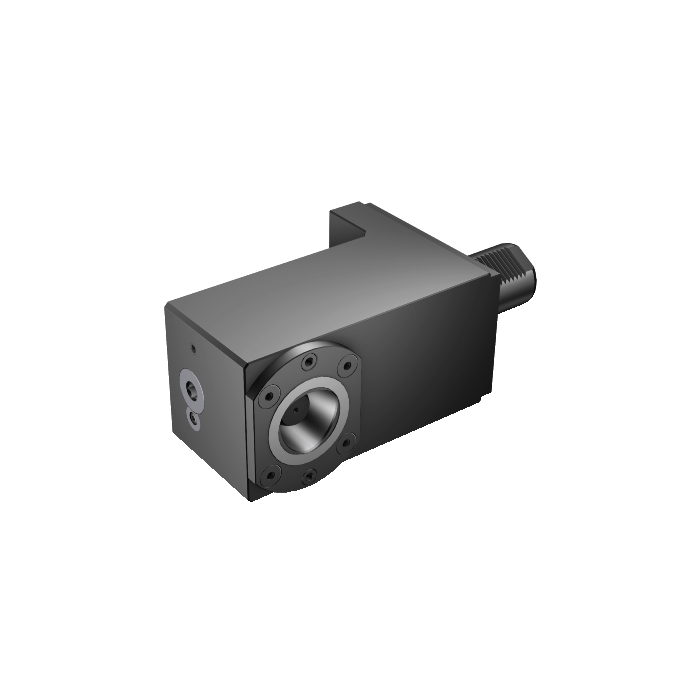

Sandvik Coromant C6-TLI-MZ50V Manual clamping unit for Mazak machines

Name: Sandvik Coromant C6-TLI-MZ50V Manual clamping unit for Mazak machines
SKU: 6144309
Price: 35936.35 ZAR
Availability: InStock

R 35 936,35 inc. vat

In stock

SKU

6144309

Manual clamping unit for Mazak machines

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Manual clamping unit for Mazak machines

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	170mm
TQ - Torque	90Nm
WT - Weight Of Item	15.8kg
OAL - Overall Length	287mm
OHX - Maximum Overhang	170mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	70mm
HF - Functional Height	0mm
LPR - Protruding Length	212mm
OAH - Overall Height	106mm
OAW - Overall Width	155mm
ORDCODE	C6-TLI-MZ50V
ADINTMS - Adaptive Interface Machine Direction	M_FLC02DN_C050N_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0630_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:22:00.000
STDNO - Standard Number	ISO26623-2
Hand	L
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
