Sandvik Coromant C6-TRI-MS110A Manual clamping unit for Mori Seiki machines

R 43 751,75 inc. vat
Out of stock
SKU
6144315

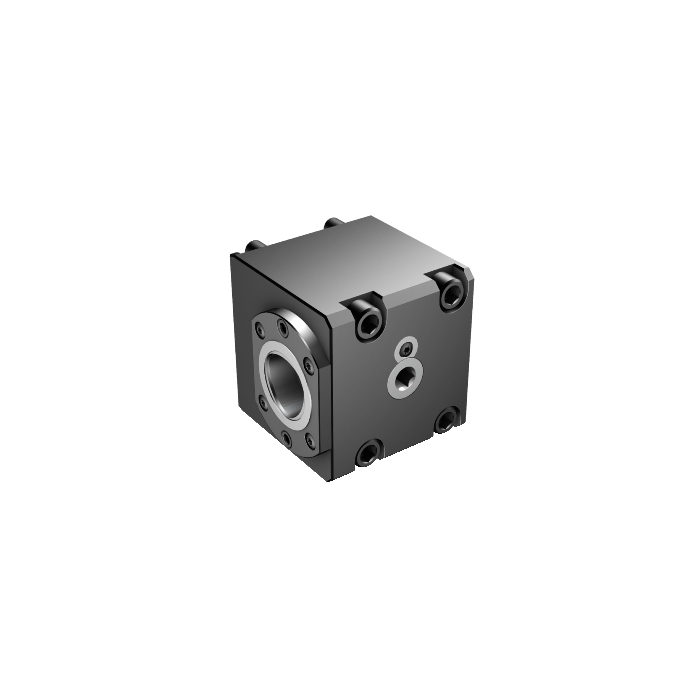

Manual clamping unit for Mori Seiki machines
Reliable nationwide shipping
Delivery in 4 - 5 days
Manual clamping unit for Mori Seiki machines
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 44mm
DCON - Connection Diameter 63mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
TQ - Torque 75Nm
WT - Weight Of Item 2.58kg
OAL - Overall Length 172mm
OHX - Maximum Overhang 100mm
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 34mm
HF - Functional Height 0mm
LPR - Protruding Length 142mm
OAH - Overall Height 158mm
OAW - Overall Width 248mm
ORDCODE C6-TRI-MS110A
ADINTMS - Adaptive Interface Machine Direction M_FLC02CN_C110N_1
ADINTWS - Adaptive Interface Workpiece Direction W_CCS02_C0630_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-04-01 14:22:00.000
STDNO - Standard Number ISO26623-2
Hand R
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
