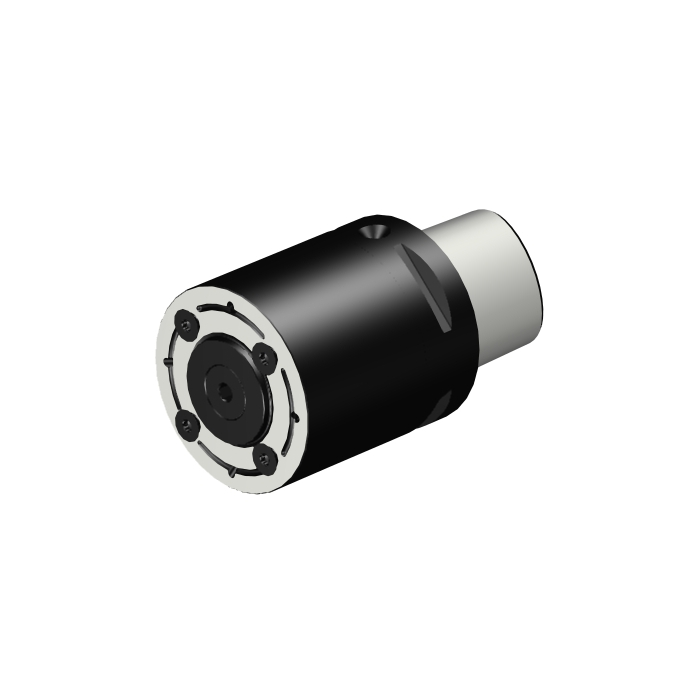

Sandvik Coromant C6-X40-080-090 Coromant Capto™ to arbor with driving screws adaptor
Next
Sandvik Coromant C5-X32-063-070 Coromant Capto™ to arbor with driving screws adaptor
Previous
![Sandvik Coromant C6-X40-080-090 Coromant Capto™ to arbor with driving screws adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/59691b8fe/sandvik-coromant-c6-x40-080-090-coromant-captotm-to-arbor-with-driving-screws-adaptor.jpg)
![Sandvik Coromant C5-X32-063-070 Coromant Capto™ to arbor with driving screws adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/59689e776/sandvik-coromant-c5-x32-063-070-coromant-captotm-to-arbor-with-driving-screws-adaptor.jpg)
R 9 248,30
inc. vat
In stock
SKU
6718396
Coromant Capto® to arbor with driving screws adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to arbor with driving screws adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 44mm |
DCON - Connection Diameter | 32mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 70mm |
BD - Body Diameter | 63mm |
LB - Body Length | 70mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 6.4Nm |
RPMX - Rotational Speed Maximum | 100001/min |
WT - Weight Of Item | 1.902kg |
OAL - Overall Length | 110.4mm |
OHX - Maximum Overhang | 70mm |
LSC - Clamping Length | 2.4mm |
DBC - Diameter Bolt Circle | 45mm |
ORDCODE | C6-X32-063-070 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0630_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_FDAC24_C0X32_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-19 08:20:00.000 |
STDNO - Standard Number | ISO26623-1 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
