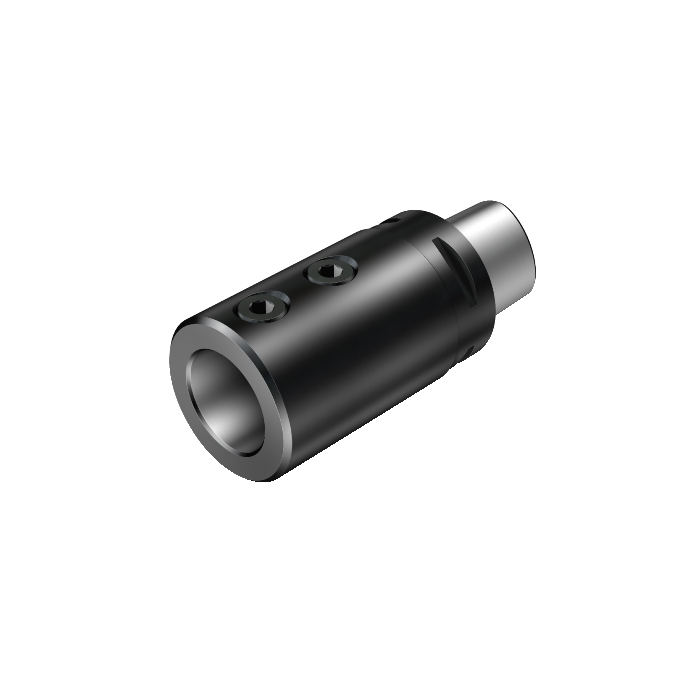

Sandvik Coromant C8-131-00110-40 Coromant Capto™ to cylindrical shank adaptor
R 7 016,15
inc. vat
Out of stock
SKU
6884888
Coromant Capto® to cylindrical shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to cylindrical shank adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 55mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 110mm |
| BD - Body Diameter | 80mm |
| LB - Body Length | 110mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 2.95kg |
| OAL - Overall Length | 158mm |
| OHX - Maximum Overhang | 110mm |
| LSC - Clamping Length | 102mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 110mm |
| ORDCODE | C8-131-00110-40 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS02_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLSF_G4000_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-22 14:40:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| Hand | N |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| SEAL - Sealing Property | False |
