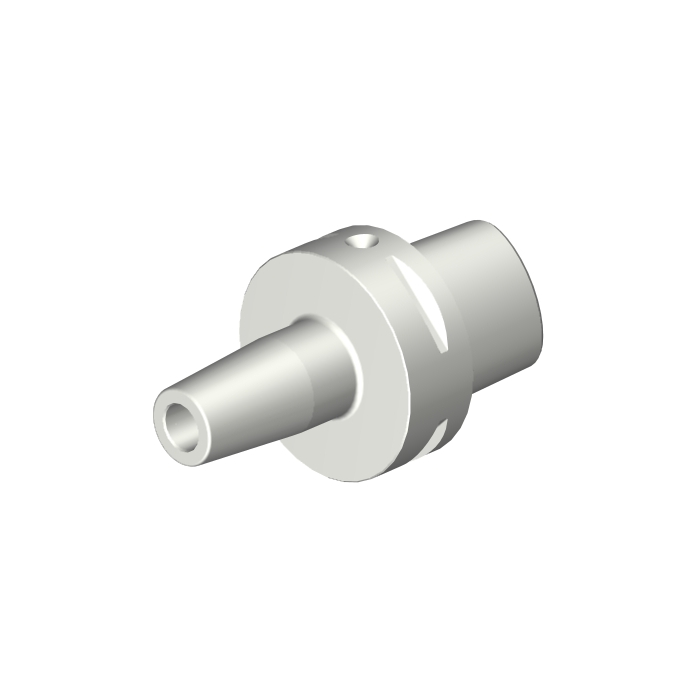

Sandvik Coromant C8-391.19-20 095 Coromant Capto™ to shrink fit chuck
Next
Sandvik Coromant C8-391.19-12 090 Coromant Capto™ to shrink fit chuck
Previous
![Sandvik Coromant C8-391.19-20 095 Coromant Capto™ to shrink fit chuck](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/550799cba/sandvik-coromant-c8-391-19-20-095-coromant-captotm-to-shrink-fit-chuck.jpg)
![Sandvik Coromant C8-391.19-12 090 Coromant Capto™ to shrink fit chuck](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/550777835/sandvik-coromant-c8-391-19-12-090-coromant-captotm-to-shrink-fit-chuck.jpg)
R 8 851,55
inc. vat
In stock
SKU
6070105
Coromant Capto® to shrink fit chuck
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to shrink fit chuck
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 55mm |
DCON - Connection Diameter | 16mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 95mm |
BD - Body Diameter | 80mm |
LB - Body Length | 95mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 140001/min |
WT - Weight Of Item | 2.018kg |
OAL - Overall Length | 143mm |
OHX - Maximum Overhang | 95mm |
ORDCODE | C8-391.19-16 095 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLSH_G1600_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-04 11:09:00.000 |
STDNO - Standard Number | ISO26623-1 |
TCDCON - Connection Diameter Tolerance | h6 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
