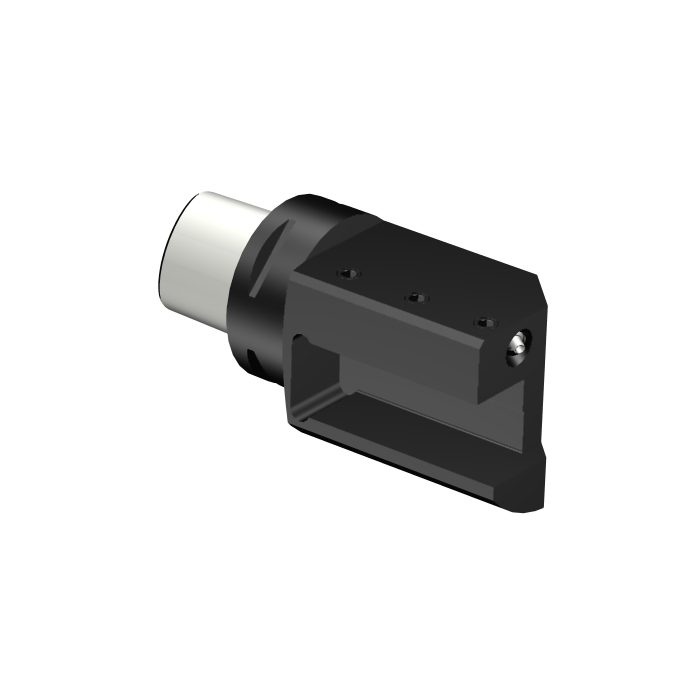

Sandvik Coromant C8-ASHL-40140-20-A Coromant Capto™ to rectangular shank adaptor

Name: Sandvik Coromant C8-ASHL-40140-20-A Coromant Capto™ to rectangular shank adaptor
SKU: 5729828
Price: 10903.15 ZAR
Availability: InStock

Be the first to review this product

R 10 903,15 inc. vat

In stock

SKU

5729828

Coromant Capto® to rectangular shank adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Coromant Capto® to rectangular shank adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	55mm
DCON - Connection Diameter	80mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	140mm
WT - Weight Of Item	5.232kg
OAL - Overall Length	188mm
OHX - Maximum Overhang	140mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	8.25mm
HF - Functional Height	31.75mm
LPR - Protruding Length	140mm
OAH - Overall Height	95mm
OAW - Overall Width	80mm
RADH - Radial Body Height	55mm
RADW - Radial Body Width	40mm
DIX - Maximum Tool Changer Interference Diameter	110mm
ORDCODE	C8-ASHL-40140-20-A
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0800_1
ADINTWS - Adaptive Interface Workpiece Direction	W_VKT01_B2020_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	5
BMC - Body Material Code	1
CHANGEDATE	2022-05-11 13:17:00.000
STDNO - Standard Number	ISO26623-1
Hand	L
DPC - Damping Property	False
DCP - Data Chip Provision	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
