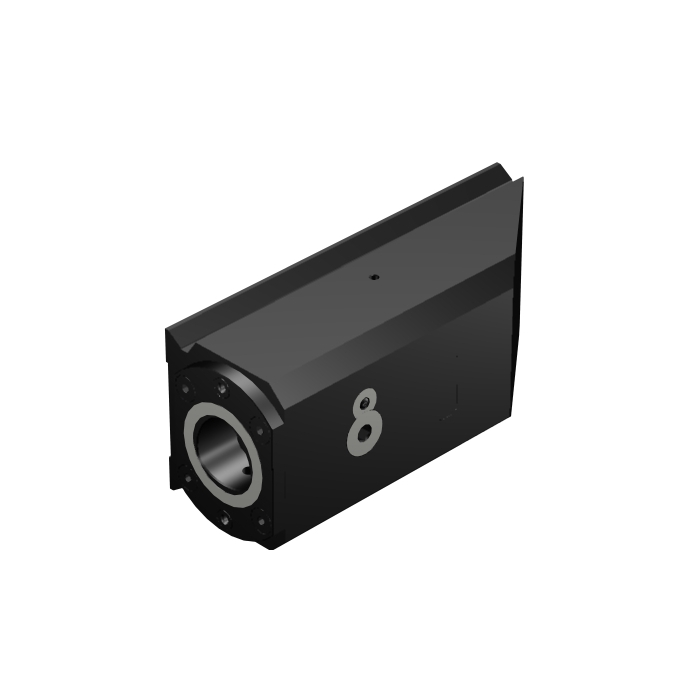

Sandvik Coromant C8-RC140-205L VDI to Coromant Capto™ clamping unit

Name: Sandvik Coromant C8-RC140-205L VDI to Coromant Capto™ clamping unit
SKU: 6144321
Price: 47557.10 ZAR
Availability: InStock

R 47 557,10 inc. vat

In stock

SKU

6144321

VDI to Coromant Capto® clamping unit

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

VDI to Coromant Capto® clamping unit

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	55mm
DCON - Connection Diameter	80mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	70mm
TQ - Torque	130Nm
WT - Weight Of Item	36.262kg
OAL - Overall Length	126mm
OHX - Maximum Overhang	70mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	205mm
HF - Functional Height	0mm
LPR - Protruding Length	120mm
OAH - Overall Height	140mm
OAW - Overall Width	350mm
ORDCODE	C8-RC140-205L
ADINTMS - Adaptive Interface Machine Direction	M_PMD01_A1400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0800_1
CNSC - Coolant Entry Style Code	2
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:22:00.000
STDNO - Standard Number	ISO26623-2
Hand	R
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
