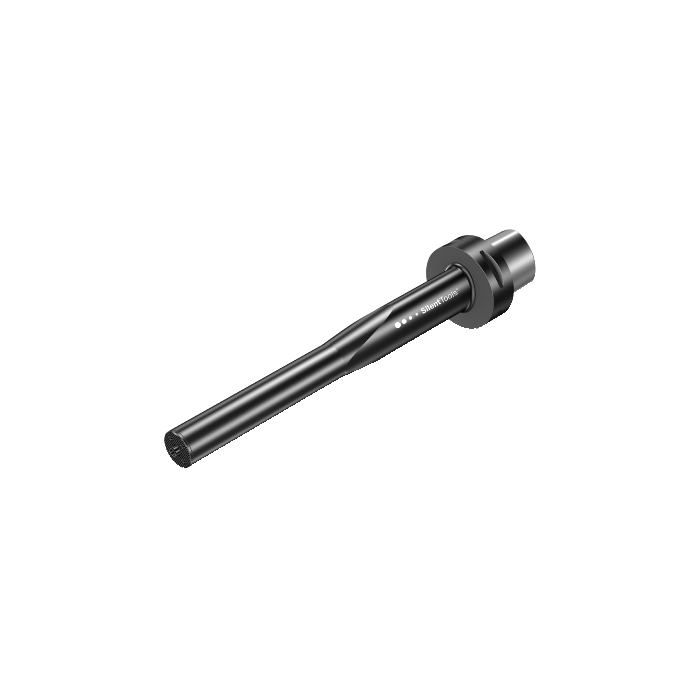

Sandvik Coromant C8-SL-D 56E 393-40 Coromant Capto™ to CoroTurn™ SL damped adaptor
Next
Sandvik Coromant C3-570-3C 32 224 Coromant Capto™ to CoroTurn™ SL damped adaptor
Previous
![Sandvik Coromant C8-SL-D 56E 393-40 Coromant Capto™ to CoroTurn™ SL damped adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/610543d21/sandvik-coromant-c8-sl-d-56e-393-40-coromant-captotm-to-coroturntm-sl-damped-adaptor.jpg)
![Sandvik Coromant C3-570-3C 32 224 Coromant Capto™ to CoroTurn™ SL damped adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/610481f31/sandvik-coromant-c3-570-3c-32-224-coromant-captotm-to-coroturntm-sl-damped-adaptor.jpg)
R 69 509,45
inc. vat
Out of stock
SKU
7012465
Coromant Capto® to CoroTurn® SL damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® SL damped adaptor
CP - Coolant Pressure | 7000000Pa |
---|---|
DFC - Functional Diameter | 55mm |
DCON - Connection Diameter | 32mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 313mm |
BD - Body Diameter | 45mm |
LB - Body Length | 283mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 8.8Nm |
WT - Weight Of Item | 4.2kg |
OAL - Overall Length | 361.325mm |
OHX - Maximum Overhang | 313mm |
BAWS - Workpiece Side Body Angle | 0deg |
OHN - Minimum Overhang | 313mm |
WF - Functional Width | 0mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 313mm |
ORDCODE | C8-SL-D 45E 313-32 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0800_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSS_C0320_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-23 19:23:00.000 |
STDNO - Standard Number | ISO26623-1 |
Hand | N |
DPC - Damping Property | True |
DCP - Data Chip Provision | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
