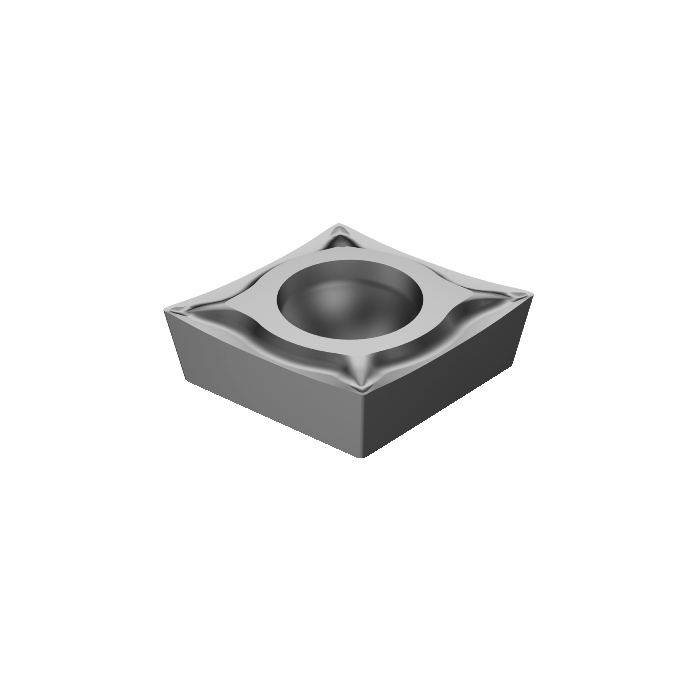

Sandvik Coromant CCGT 12 04 04-UM H10A CoroTurn™ 107 insert for turning
R 353,05
inc. vat
In stock
SKU
5724851
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.008kg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 5.5mm |
| LE - Cutting Edge Effective Length | 12.4959mm |
| L - Cutting Edge Length | 12.8959mm |
| ORDCODE | CCGT 12 04 04-UM H10A |
| CHANGEDATE | 2021-12-17 17:06:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | C |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC1204_1 |
| Grade | H10A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | UM |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
