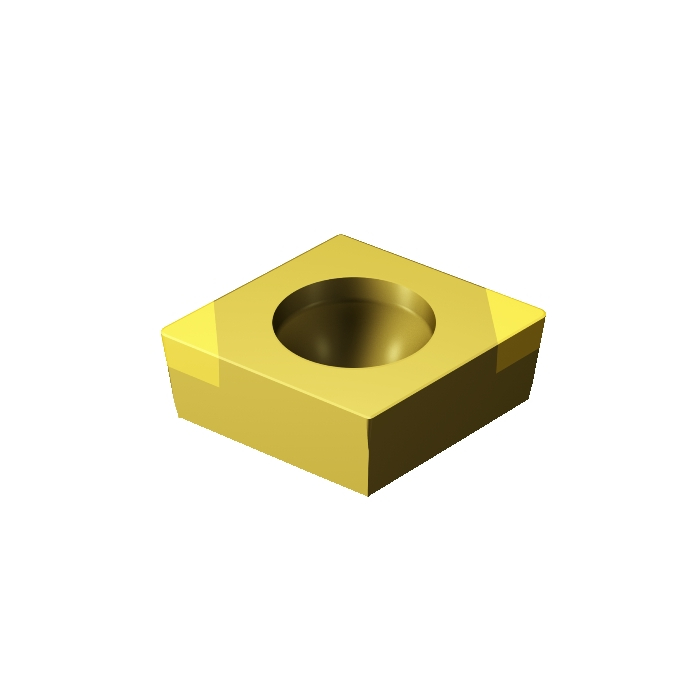

Sandvik Coromant CCGW060204S01520FWH 7115 CoroTurn™ 107 insert for turning
R 1 125,85
inc. vat
In stock
SKU
7106069
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.002kg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.4mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 2.58mm |
| L - Cutting Edge Length | 6.448mm |
| KRINS - Major Cutting Edge Angle | 95deg |
| BN - Face Land Width | 0.15mm |
| GB - Face Land Angle | 20deg |
| BS - Wiper Edge Length | 0.45mm |
| ORDCODE | CCGW060204S01520FWH 7115 |
| CHANGEDATE | 2022-09-23 22:03:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | C |
| SSC - Insert Seat Size Code | 06 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC0602_1 |
| Grade | 7115 |
| COATING | PVD TiN |
| SUBSTRATE | BC |
| CBMD - Chip Breaker Manufacturer's Designation | WH |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
