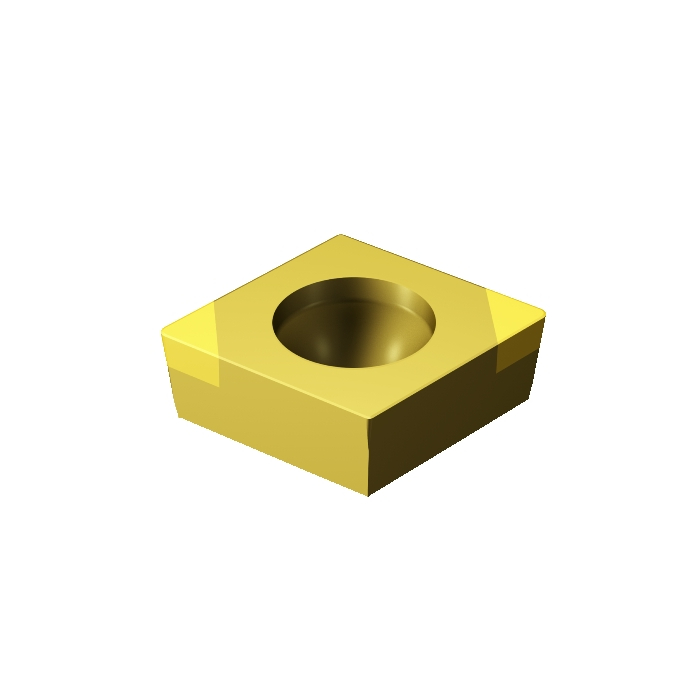

Sandvik Coromant CCGW060208S01520FWH 7105 CoroTurn™ 107 insert for turning

Name: Sandvik Coromant CCGW060208S01520FWH 7105 CoroTurn™ 107 insert for turning
SKU: 7105958
Price: 1125.85 ZAR
Availability: InStock

Be the first to review this product

R 1 125,85 inc. vat

In stock

SKU

7105958

CoroTurn® 107 insert for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 insert for turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	0.003kg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.8mm
Insert Thickness	2.38125mm
D1 - Fixing Hole Diameter	2.5mm
LE - Cutting Edge Effective Length	2.58mm
L - Cutting Edge Length	6.448mm
KRINS - Major Cutting Edge Angle	95deg
BN - Face Land Width	0.15mm
GB - Face Land Angle	20deg
BS - Wiper Edge Length	0.55mm
ORDCODE	CCGW060208S01520FWH 7105
CHANGEDATE	2022-09-23 22:02:00.000
Hand	N
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	C
SSC - Insert Seat Size Code	06
CUTINT_SIZESHAPE - Insert Size And Shape	MISO_CC0602_1
Grade	7105
COATING	PVD TiN
SUBSTRATE	BC
CBMD - Chip Breaker Manufacturer's Designation	WH
CEDC - Cutting Edge Count	2
WEP - Wiper Edge Property	True
