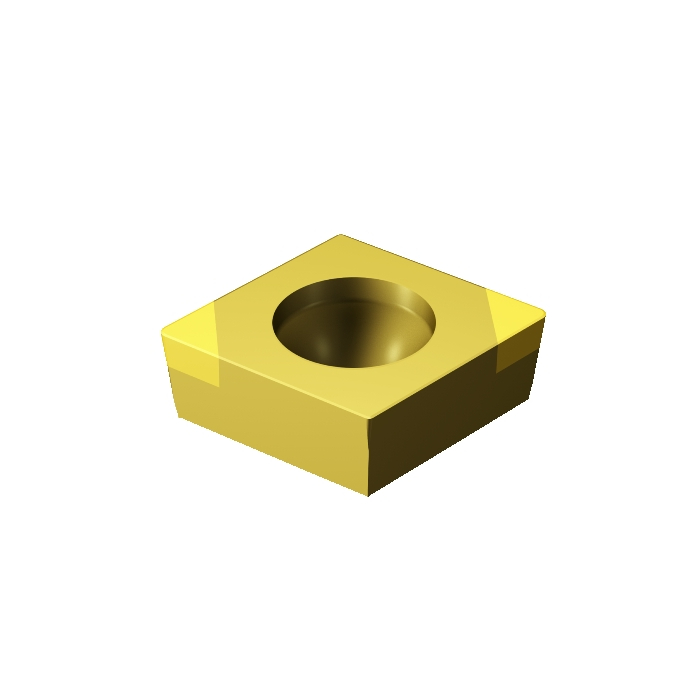

Sandvik Coromant CCGW09T308T01020F 7525 CoroTurn™ 107 insert for turning
R 1 137,35
inc. vat
In stock
SKU
5965418
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3.5g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| LE - Cutting Edge Effective Length | 3mm |
| L - Cutting Edge Length | 9.6719mm |
| BN - Face Land Width | 0.1mm |
| GB - Face Land Angle | 20deg |
| ORDCODE | CCGW09T308T01020F 7525 |
| CHANGEDATE | 2021-12-17 20:36:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | C |
| SSC - Insert Seat Size Code | 09 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC09T3_1 |
| Grade | 7525 |
| COATING | PVD TiN |
| SUBSTRATE | BC |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
