Sandvik Coromant CCLNR 204D-4 T-Max™ shank tool for turning

R 3 389,05 inc. vat
Out of stock
SKU
5723600
T-Max® shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 152.4mm
TQ - Torque 3.9Nm
WT - Weight Of Item 1.133kg
OAL - Overall Length 152.4mm
OHX - Maximum Overhang 32mm
LSC - Clamping Length 120.4mm
KAPR - Tool Cutting Edge Angle 95deg
RMPX - Maximum Ramping Angle 0deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 38.1mm
HF - Functional Height 31.75mm
GAMO - Orthogonal Rake Angle -6deg
LAMS - Inclination Angle -6deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.79375mm
Insert Thickness 7.9375mm
H - Shank Height 31.75mm
B - Shank Width 31.75mm
ORDCODE CCLNR 204D-4
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B2020_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:04:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_CN1207_2
Hand R

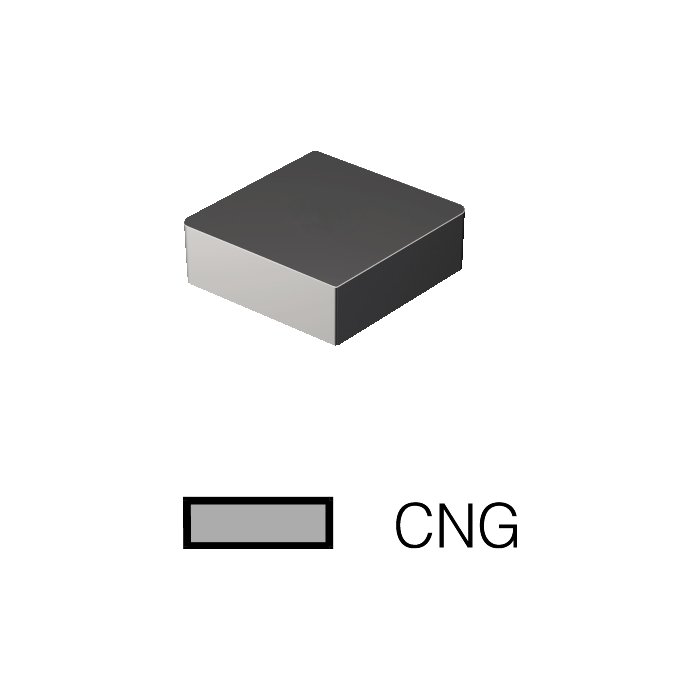

MIID - Master Insert Identification CNGN 12 07 08
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code C
SSC - Insert Seat Size Code 12
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
