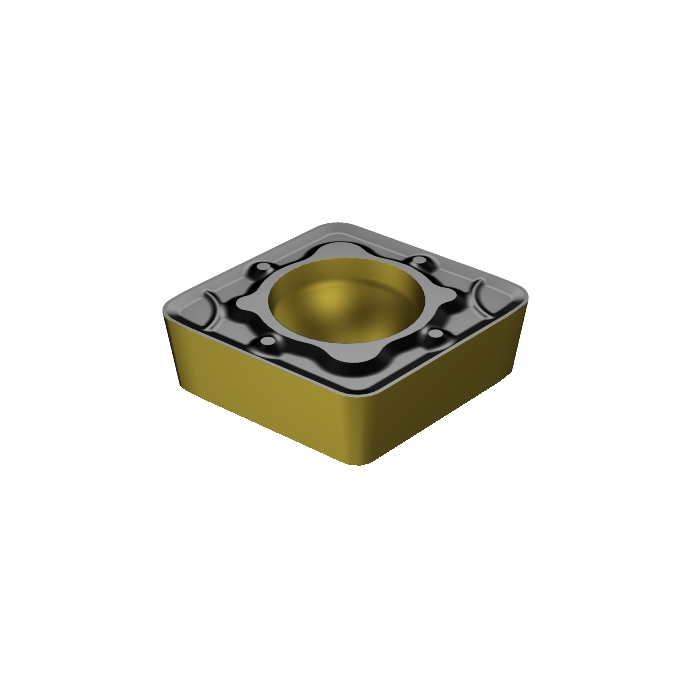

Sandvik Coromant CCMT 09 T3 04-WM 1515 CoroTurn™ 107 insert for turning

R 217,35 inc. vat
In stock
SKU
5724785
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3.6g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.3969mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 9.2719mm
L - Cutting Edge Length 9.6719mm
KRINS - Major Cutting Edge Angle 95deg
BS - Wiper Edge Length 0.6mm
ORDCODE CCMT 09 T3 04-WM 1515
CHANGEDATE 2021-12-17 17:05:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CC09T3_1
Grade 1515
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WM
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property True
