Sandvik Coromant CCMT 09 T3 04-MM 1125 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant CCMT 09 T3 08-MR 2035 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant CCMT 09 T3 04-MM 1125 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/418437d42/sandvik-coromant-ccmt-09-t3-04-mm-1125-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant CCMT 09 T3 08-MR 2035 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/41841e17d/sandvik-coromant-ccmt-09-t3-08-mr-2035-coroturntm-107-insert-for-turning.jpg)
R 188,60
inc. vat
In stock
SKU
5723616
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days

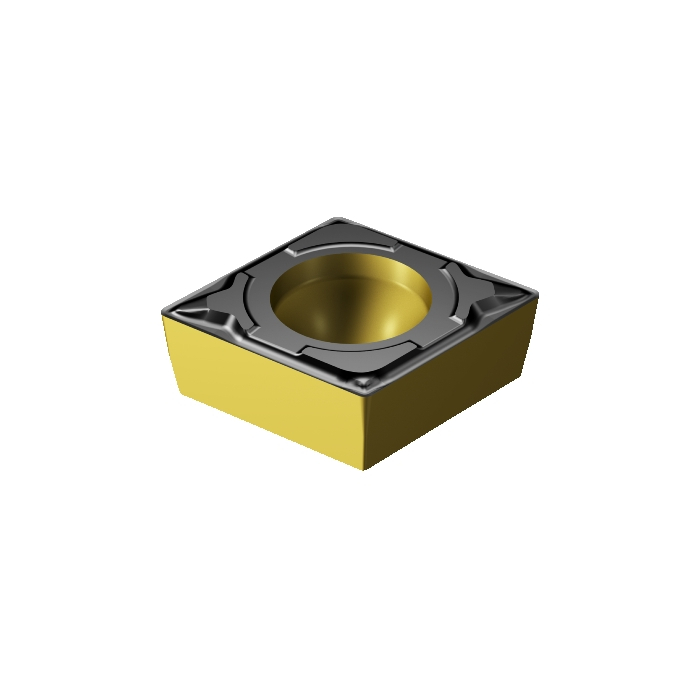

CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 3.7g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 9.525mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
LE - Cutting Edge Effective Length | 8.8719mm |
L - Cutting Edge Length | 9.6719mm |
ORDCODE | CCMT 09 T3 08-PF 1515 |
CHANGEDATE | 2021-12-17 16:56:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | C |
SSC - Insert Seat Size Code | 09 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC09T3_1 |
Grade | 1515 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | PF |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | False |
