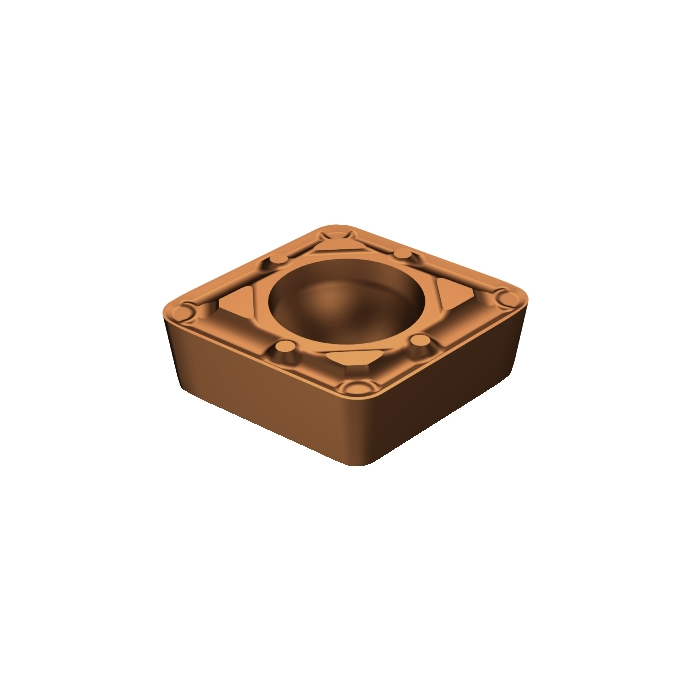

Sandvik Coromant CCMT 09 T3 08-WF 1125 CoroTurn™ 107 insert for turning

R 217,35 inc. vat
In stock
SKU
5724505
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3.6g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 8.8719mm
L - Cutting Edge Length 9.6719mm
KRINS - Major Cutting Edge Angle 95deg
BS - Wiper Edge Length 0.7mm
ORDCODE CCMT 09 T3 08-WF 1125
CHANGEDATE 2021-12-17 17:02:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CC09T3_1
Grade 1125
COATING PVD TiAlN+TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WF
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property True
