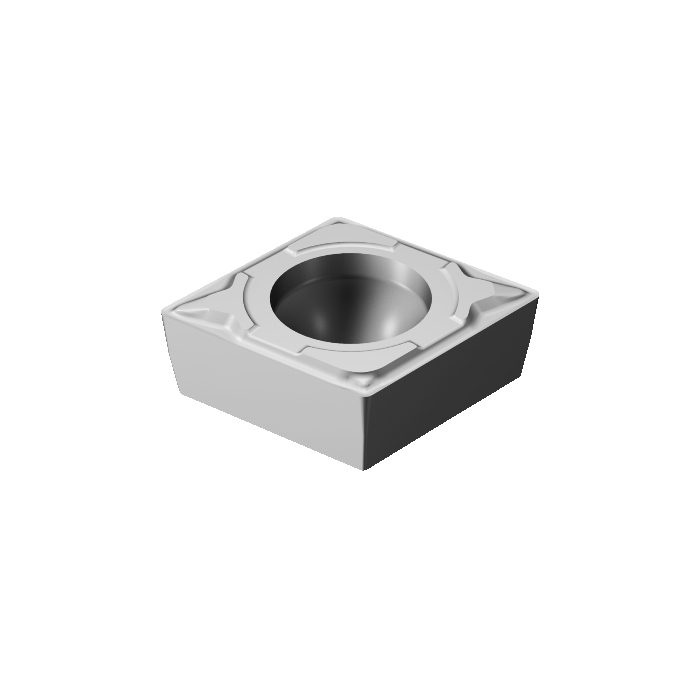

Sandvik Coromant CCMT 12 04 04-KF H13A CoroTurn™ 107 insert for turning

R 190,90 inc. vat
In stock
SKU
5724320
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 8g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.3969mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.5mm
LE - Cutting Edge Effective Length 12.4959mm
L - Cutting Edge Length 12.8959mm
ORDCODE CCMT 12 04 04-KF H13A
CHANGEDATE 2021-12-17 17:01:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CC1204_1
Grade H13A
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation KF
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
