R 3 389,05
inc. vat
Out of stock
SKU
5724351
T-Max® shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 170mm |
TQ - Torque | 3.9Nm |
WT - Weight Of Item | 1.262kg |
OAL - Overall Length | 170mm |
OHX - Maximum Overhang | 39.4mm |
LSC - Clamping Length | 130.6mm |
KAPR - Tool Cutting Edge Angle | 93deg |
RMPX - Maximum Ramping Angle | 27deg |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 40mm |
HF - Functional Height | 32mm |
GAMO - Orthogonal Rake Angle | -6deg |
LAMS - Inclination Angle | -7deg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 7.9375mm |
H - Shank Height | 32mm |
B - Shank Width | 32mm |
ORDCODE | CDJNL 3232P 15-4 |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A3232_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:06:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_DN1507_2 |
Hand | L |

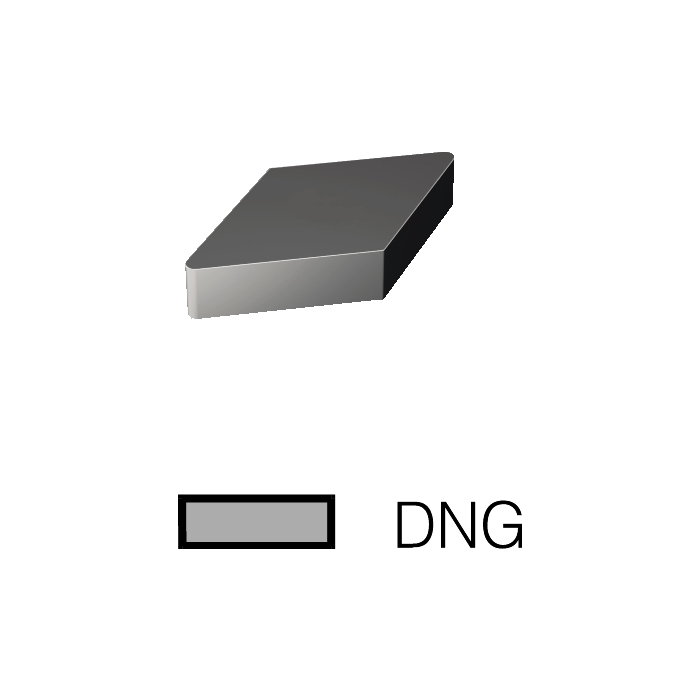

MIID - Master Insert Identification | DNGN 15 07 08 |
IFS - Insert Mounting Style Code | 1 |
SC - Insert Shape Code | D |
SSC - Insert Seat Size Code | 15 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
