Sandvik Coromant CKJNR 12 3 T-Max™ shank tool for turning

Name: Sandvik Coromant CKJNR 12 3 T-Max™ shank tool for turning
SKU: 5725290
Price: 2098.75 ZAR
Availability: OutOfStock

R 2 098,75 inc. vat

Out of stock

SKU

5725290

T-Max® shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® shank tool for turning

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	127mm
TQ - Torque	5Nm
WT - Weight Of Item	0.75kg
OAL - Overall Length	127mm
OHX - Maximum Overhang	32mm
LSC - Clamping Length	95mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	30deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	28.575mm
HF - Functional Height	19.05mm
GAMO - Orthogonal Rake Angle	-6deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	0deg
RE - Corner Radius	0.5mm
Insert Thickness	4.7625mm
H - Shank Height	19.05mm
B - Shank Width	19.05mm
W1 - Insert Width	9.525mm
ORDCODE	CKJNR 12 3
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1212_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-09-15 10:07:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_KN1604R_1
Hand	R

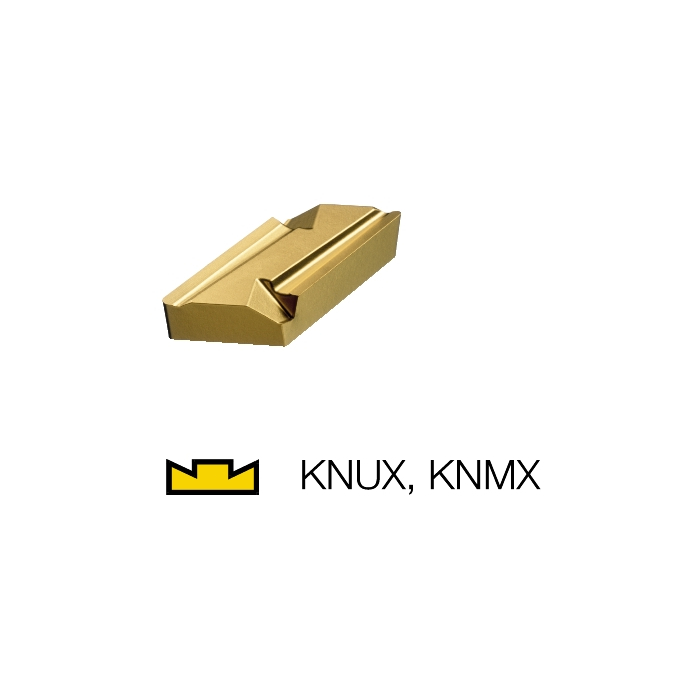

MIID - Master Insert Identification	KNUX 16 04 05R
SC - Insert Shape Code	K
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
