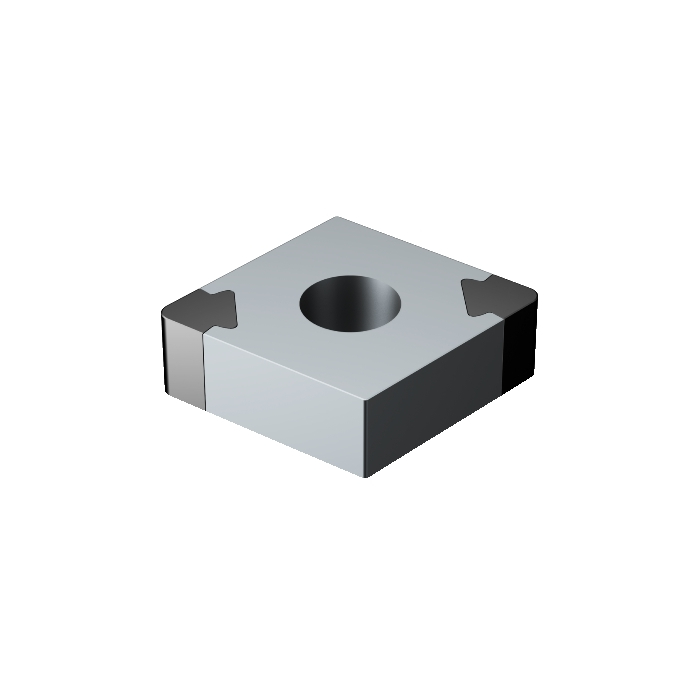

Sandvik Coromant CNGA120408S01030A 7025 T-Max™ P insert for turning

R 2 340,25 inc. vat
In stock
SKU
5724696
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 8.9g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.7938mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 2.9mm
L - Cutting Edge Length 12.8959mm
BN - Face Land Width 0.1mm
GB - Face Land Angle 30deg
ORDCODE CNGA120408S01030A 7025
CHANGEDATE 2022-09-14 06:23:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code C
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CN1204_1
Grade 7025
SUBSTRATE BL
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
