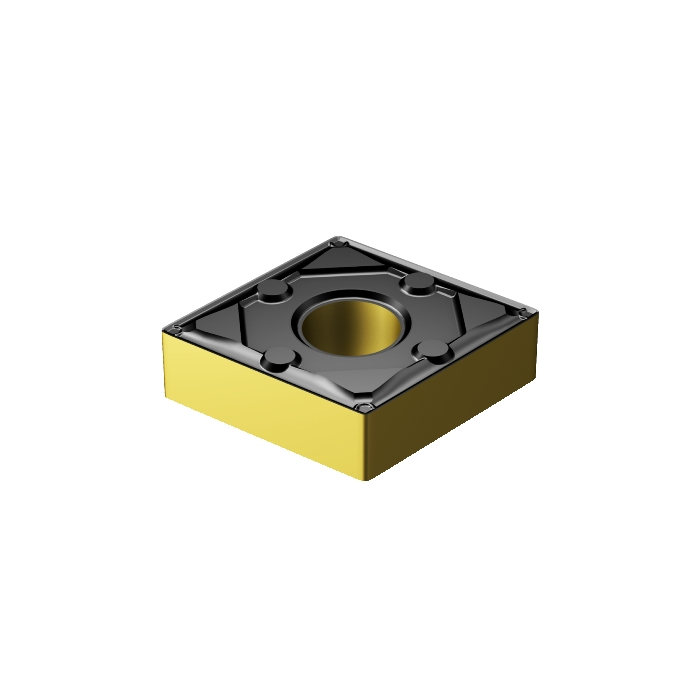

Sandvik Coromant CNMG 09 03 08-WF 3225 T-Max™ P insert for turning

R 175,95 inc. vat
In stock
SKU
6868424
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3.6g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.175mm
D1 - Fixing Hole Diameter 3.81mm
LE - Cutting Edge Effective Length 8.8719mm
L - Cutting Edge Length 9.6719mm
KRINS - Major Cutting Edge Angle 95deg
BS - Wiper Edge Length 0.7mm
ORDCODE CNMG 09 03 08-WF 3225
CHANGEDATE 2022-09-22 10:33:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code C
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CN0903_1
Grade 3225
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WF
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property True
