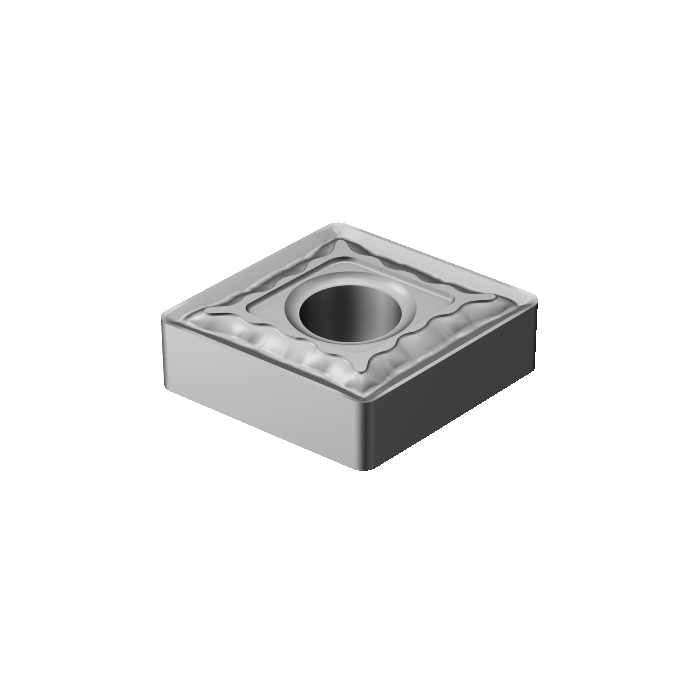

Sandvik Coromant CNMG 16 06 08-QM H13A T-Max™ P insert for turning

R 269,10 inc. vat
In stock
SKU
5724812
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.02kg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 15.875mm
RE - Corner Radius 0.7938mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 6.35mm
LE - Cutting Edge Effective Length 15.3199mm
L - Cutting Edge Length 16.1199mm
ORDCODE CNMG 16 06 08-QM H13A
CHANGEDATE 2021-12-17 17:05:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code C
SSC - Insert Seat Size Code 16
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CN1606_1
Grade H13A
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation QM
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
