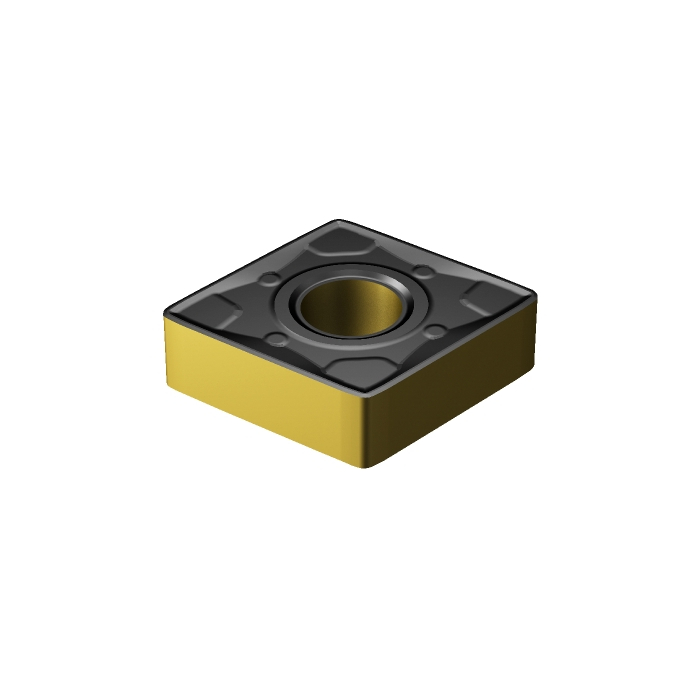

Sandvik Coromant CNMM 19 06 16-WR 4315 T-Max™ P insert for turning
R 622,15
inc. vat
In stock
SKU
6612948
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.027kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 19.05mm |
| RE - Corner Radius | 1.5875mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 7.925mm |
| LE - Cutting Edge Effective Length | 17.7439mm |
| L - Cutting Edge Length | 19.3439mm |
| KRINS - Major Cutting Edge Angle | 95deg |
| BS - Wiper Edge Length | 1.5mm |
| ORDCODE | CNMM 19 06 16-WR 4315 |
| CHANGEDATE | 2022-09-22 11:48:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | C |
| SSC - Insert Seat Size Code | 19 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CN1906_1 |
| Grade | 4315 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | WR |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
