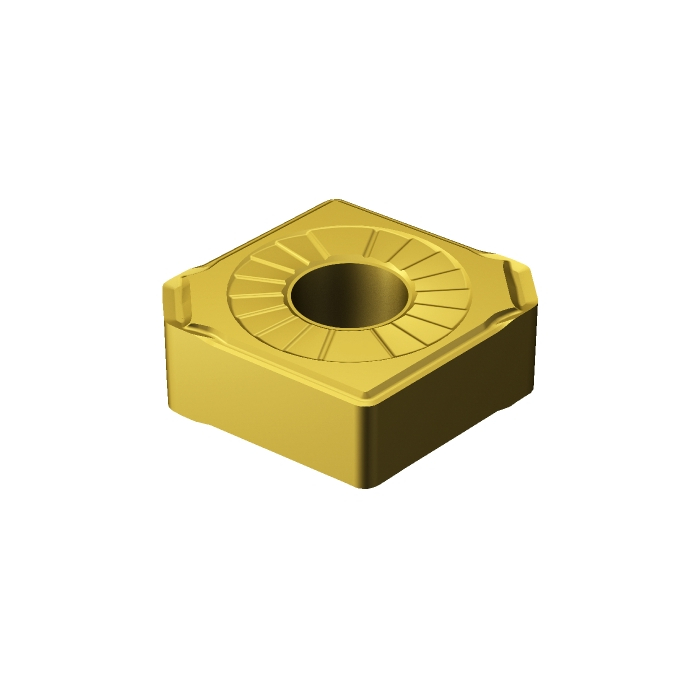

Sandvik Coromant CNMX 12 04 A2-SM S05F T-Max™ P insert for turning

R 281,75 inc. vat
In stock
SKU
5726057
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 10g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.8mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 3.8mm
L - Cutting Edge Length 12.8959mm
KRINS - Major Cutting Edge Angle 95deg
APMX - Depth Of Cut Maximum 2.5mm
KCH - Corner Chamfer 50deg
CHW - Corner Chamfer Width 2.5mm
ORDCODE CNMX 12 04 A2-SM S05F
CHANGEDATE 2021-12-17 17:18:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code C
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CN1204_1
Grade S05F
COATING CVD TiCrN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation SM
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
