R 1 980,30
inc. vat
In stock
SKU
7182451
CoroTurn® Prime shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® Prime shank tool for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 114.3mm |
TQ - Torque | 4Nm |
WT - Weight Of Item | 0.298kg |
OAL - Overall Length | 114.3mm |
OHX - Maximum Overhang | 38.1mm |
LSC - Clamping Length | 90.59mm |
KAPR - Tool Cutting Edge Angle | 30deg |
RMPX - Maximum Ramping Angle | 15deg |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
OHN - Minimum Overhang | 23.71mm |
WF - Functional Width | 25.4mm |
HF - Functional Height | 19.05mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 11mm |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 6mm |
H - Shank Height | 19.05mm |
B - Shank Width | 19.05mm |
APMX - Depth Of Cut Maximum | 1.5mm |
ORDCODE | CP-30AL-12-11 |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1212_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:17:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_TKA11_1 |
Hand | L |
MIID - Master Insert Identification | CP-A1108 |
IFS - Insert Mounting Style Code | 3 |

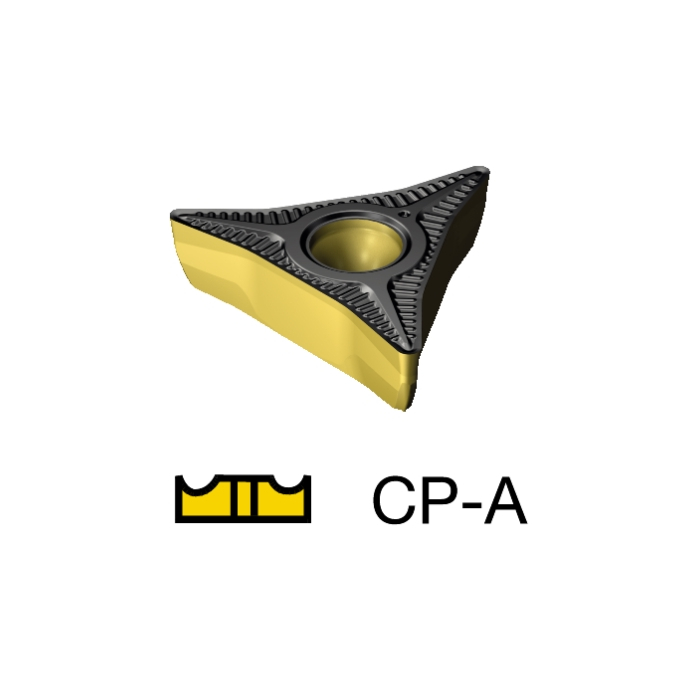

SSC - Insert Seat Size Code | CP-A |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
