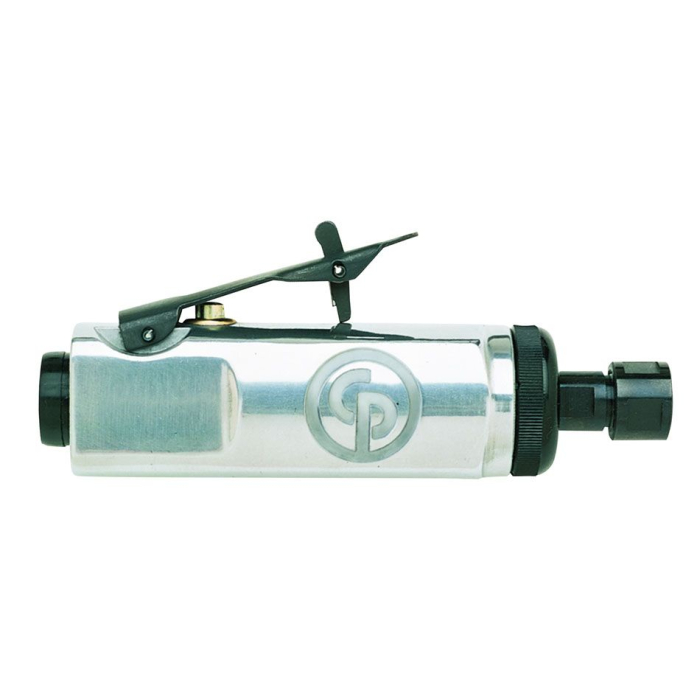

CP0860E DIE GRINDER 6MM COLLETT
R 11 097,44
inc. vat
In stock
SKU
CP-T021136
Reliable nationwide shipping
Delivery in 4 - 5 days
DIE GRINDER 6MM COLLETT
Benefits
- General Maintenance application die grinder
- Productivity and control
- Excellent for cleaning tires, mouldings, porting, relieving engines, and general high-speed polishing and grinding
CE Certificate
Operators Manual
Exploded View
Safety Instructions & Data Sheets
| Metric | Imperial | |
|---|---|---|
| Model | CP860E | |
| Part number | T021136 | |
| Actual air consumption | 595 l/mn | 20.988 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 297 l/mn | 10.5 cfm |
| Collet / spindle size | 1/4 " | |
| Collet size | 6 mm | |
| Free speed | 24000 rpm | |
| Free speed air consumption | 9.9 l/s | 21 cfm |
| Length | 146 mm | 5.75 " |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 0.57 kg | 1 1/4 lb |
| Power | 400 W | 0.54 hp |
| Rear exhaust | yes | |
| Sound Power | 103.5 db(A) | |
| Sound pressure | 92.5 db(A) | |
| Vibration | 3.7 m/s² | |
| Vibration ISO | ISO-28927-12 | |
| Vibration uncertainty (K) | 1.6 m/s² |
- 6 mm collet
- Rugged and energy-efficient 0.54 hp (400 W) motor
- Adjustable speed regulator
- Lock-off throttle
- Square handle design for greater comfort
