CP6748EX-P11R ATEX 1/2" - IMPACT WRENCH
Special Price
R 16 000,64
inc. vat
Regular Price
R 20 000,81
inc. vat
In stock
SKU
CP-6151590570
Reliable nationwide shipping
Delivery in 4 - 5 days

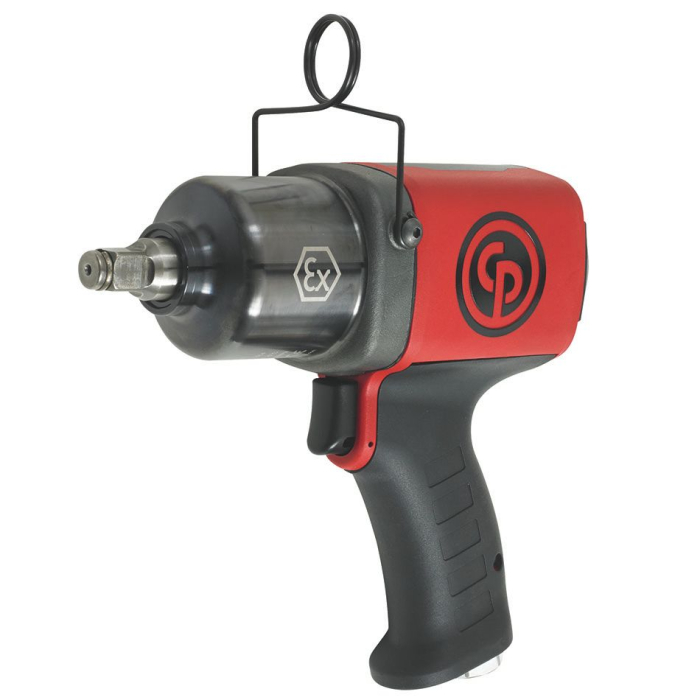

CP6748EX-P11R ATEX 1/2"
Benefits
- Superior durability - designed for intensive use
- High torque - up to 800 ft.lb (1085 Nm)
- Comfortable and lightweight
CE Certificate
Operators Manual
Exploded View
Safety Instructions & Data Sheets
| Metric | Imperial | |
|---|---|---|
| Model | CP6748EX-P11R ATEX | |
| Part number | 6151590570 | |
| Actual air consumption | 14.2 l/s | 30 cfm |
| Air inlet thread size | 1/4 " | |
| Blows per minute | 1200 | |
| Bolt size | M20 mm | 3/4" " |
| Box dimensions | 75 x 220 x 230 mm | 2,9 x 8,7 x 9,1 " |
| Clutch type | Twin hammer / Oil Bath | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 8400 rpm | |
| Handle type | Pistol | |
| Length | 200 mm | 7.9 " |
| Maximum Torque (reverse) | 1085 Nm | 800 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 2.4 kg | 5.4 lb |
| Power/weight ratio | 452.1 Nm/kg | 148.1 ft.lb/lb |
| Side to center | 36 mm | 1.4 " |
| Socket retainer | Friction ring | |
| Sound Power | 104 db(A) | |
| Sound pressure | 93 db(A) | |
| Square drive | 1/2 " | |
| Vibration | 8.7 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 2.2 m/s² | |
| Working Torque Range (fwd) | 180 - 760 Nm | 130 - 560 ft.lbs |
- Twin hammer in oil bath and steel clutch housing for long life
- Extremely durable steel motor
- Dust-proof (IP6) and ATEX certified
