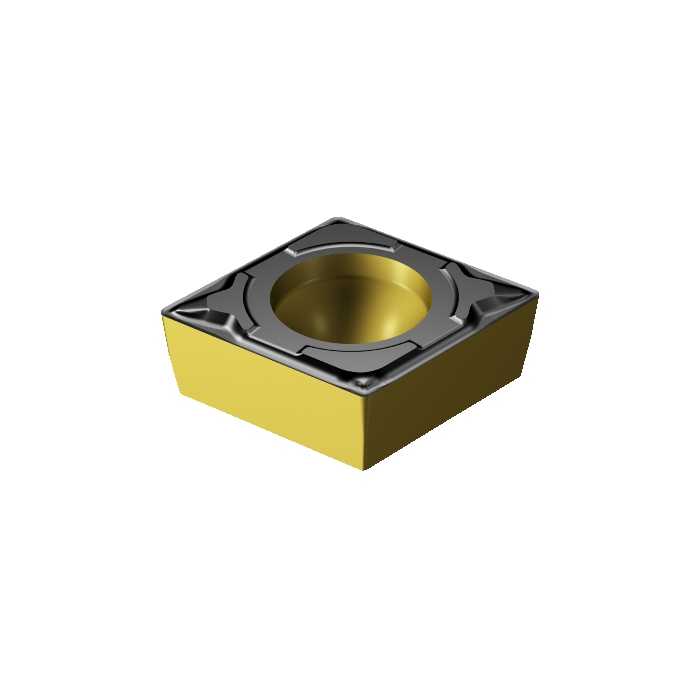

Sandvik Coromant CPMT 06 02 04-KF 3225 CoroTurn™ 111 insert for turning

R 169,05 inc. vat
In stock
SKU
6868369
CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.001kg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.3969mm
Insert Thickness 2.38125mm
D1 - Fixing Hole Diameter 2.8mm
LE - Cutting Edge Effective Length 6.048mm
L - Cutting Edge Length 6.448mm
ORDCODE CPMT 06 02 04-KF 3225
CHANGEDATE 2021-12-17 21:41:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 06
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CP0602_1
Grade 3225
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation KF
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
