Sandvik Coromant CRDCN 3225P 09-A T-Max™ shank tool for turning

R 3 501,75 inc. vat
In stock
SKU
5726175
T-Max® shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 170mm
TQ - Torque 7.5Nm
WT - Weight Of Item 0.927kg
OAL - Overall Length 170mm
OHX - Maximum Overhang 29mm
LSC - Clamping Length 141mm
RMPX - Maximum Ramping Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 17.2mm
HF - Functional Height 32mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 4.7625mm
Insert Thickness 7.9375mm
H - Shank Height 32mm
LU - Usable Length 29mm
B - Shank Width 25mm
ORDCODE CRDCN 3225P 09-A
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A3225_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-07-12 13:25:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_RC0907_1
Hand N

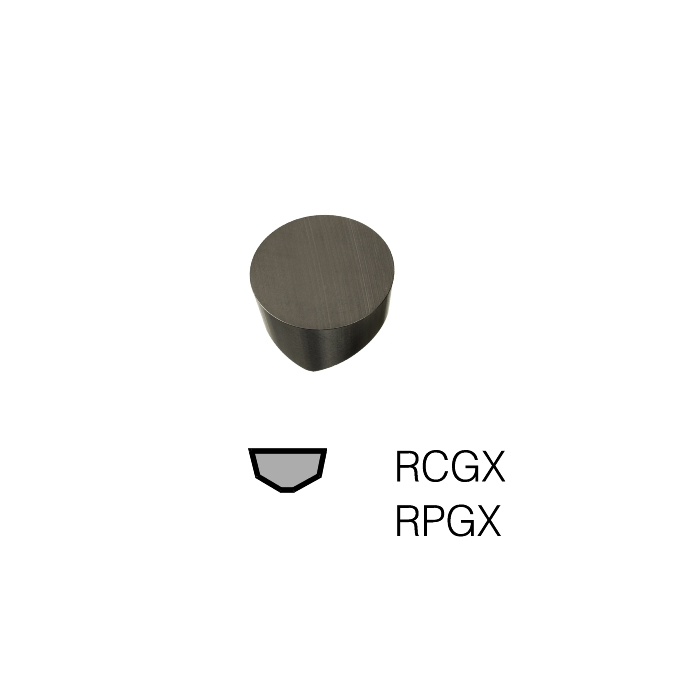

MIID - Master Insert Identification RCGX 09 07 00
SC - Insert Shape Code R
SSC - Insert Seat Size Code 09
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
