Sandvik Coromant CRDCN 5040T 15-ID T-Max™ shank tool for turning
R 6 404,35
inc. vat
In stock
SKU
5726188
T-Max® shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® shank tool for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 300mm |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 4.37kg |
| OAL - Overall Length | 300mm |
| OHX - Maximum Overhang | 35mm |
| LSC - Clamping Length | 265mm |
| RMPX - Maximum Ramping Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 27.9mm |
| HF - Functional Height | 50mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 15.875mm |
| RE - Corner Radius | 7.9375mm |
| Insert Thickness | 10mm |
| H - Shank Height | 50mm |
| LU - Usable Length | 35mm |
| B - Shank Width | 40mm |
| ORDCODE | CRDCN 5040T 15-ID |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A5040_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-06 23:31:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC1510_1 |
| Hand | N |

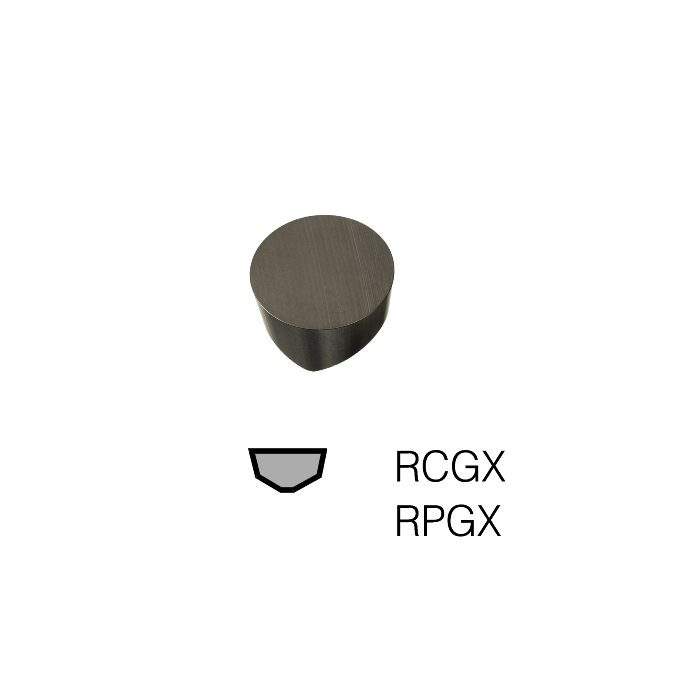

| MIID - Master Insert Identification | RCGX 15 10 00 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 15 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
