Sandvik Coromant CSBPL 2525M 12 T-Max™ S shank tool for turning

R 2 018,25 inc. vat
Out of stock
SKU
5725930
T-Max® S shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
TQ - Torque 5Nm
WT - Weight Of Item 0.73kg
OAL - Overall Length 150mm
OHX - Maximum Overhang 30.1mm
LSC - Clamping Length 119.9mm
KAPR - Tool Cutting Edge Angle 75deg
RMPX - Maximum Ramping Angle 10deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 22mm
HF - Functional Height 25mm
GAMO - Orthogonal Rake Angle 6deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.79375mm
Insert Thickness 3.175mm
H - Shank Height 25mm
B - Shank Width 25mm
ORDCODE CSBPL 2525M 12
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2525_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-04-06 23:28:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_SP1203_1
Hand L

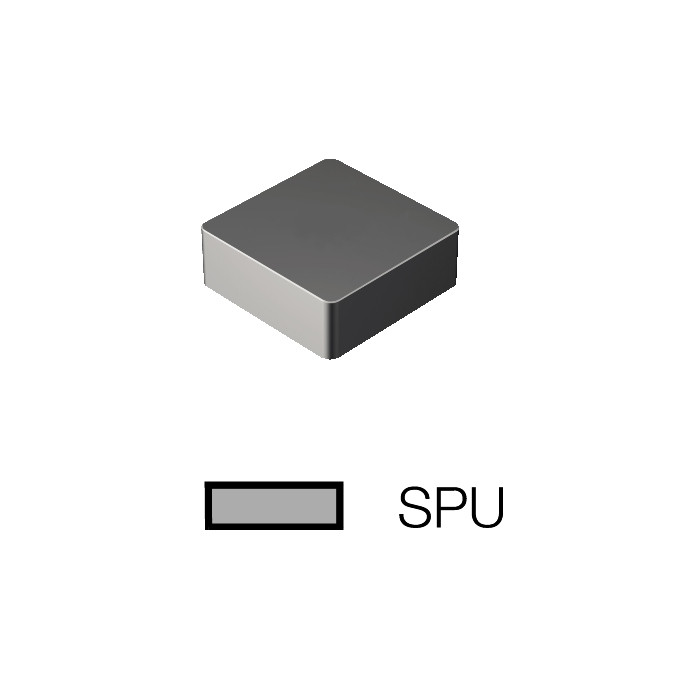

MIID - Master Insert Identification SPUN 12 03 08
SC - Insert Shape Code S
SSC - Insert Seat Size Code 12
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
