Sandvik Coromant CSRNL 204DM1-4 T-Max™ shank tool for turning

Name: Sandvik Coromant CSRNL 204DM1-4 T-Max™ shank tool for turning
SKU: 5726080
Price: 3387.90 ZAR
Availability: OutOfStock

R 3 387,90 inc. vat

Out of stock

SKU

5726080

T-Max® shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® shank tool for turning

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	152.4mm
TQ - Torque	3.9Nm
WT - Weight Of Item	1.116kg
OAL - Overall Length	152.4mm
OHX - Maximum Overhang	34.29mm
LSC - Clamping Length	118.11mm
KAPR - Tool Cutting Edge Angle	75deg
RMPX - Maximum Ramping Angle	10deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	32.8168mm
HF - Functional Height	31.75mm
GAMO - Orthogonal Rake Angle	-6deg
LAMS - Inclination Angle	-6deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	12.7mm
RE - Corner Radius	0.79375mm
Insert Thickness	7.9375mm
H - Shank Height	31.75mm
B - Shank Width	31.75mm
ORDCODE	CSRNL 204DM1-4
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B2020_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-06 23:30:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_SN1207_2
Hand	L

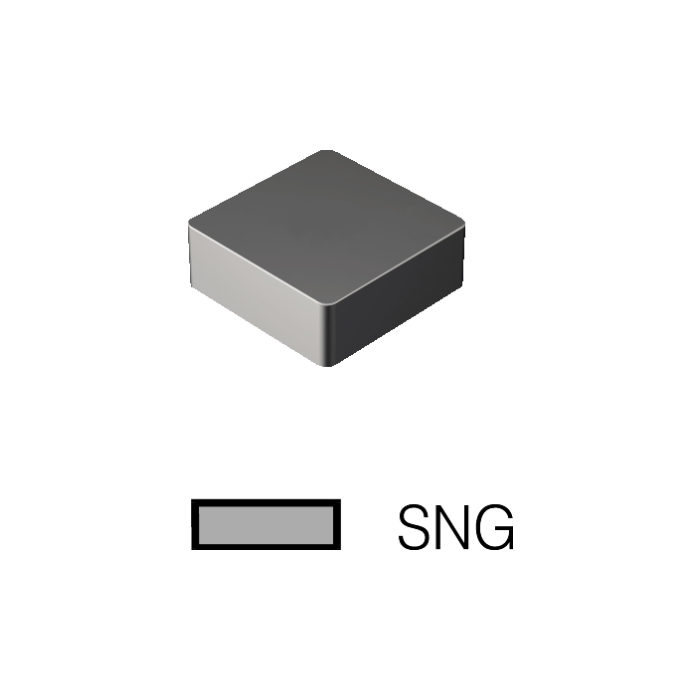

MIID - Master Insert Identification	SNGN 12 07 08
IFS - Insert Mounting Style Code	1
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
