Sandvik Coromant CTFPL 1616H 11 T-Max™ S shank tool for turning

Name: Sandvik Coromant CTFPL 1616H 11 T-Max™ S shank tool for turning
SKU: 5726278
Price: 1716.95 ZAR
Availability: InStock

R 1 716,95 inc. vat

In stock

SKU

5726278

T-Max® S shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® S shank tool for turning

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
TQ - Torque	3.5Nm
WT - Weight Of Item	0.211kg
OAL - Overall Length	100mm
OHX - Maximum Overhang	15.5mm
LSC - Clamping Length	84.5mm
KAPR - Tool Cutting Edge Angle	91deg
RMPX - Maximum Ramping Angle	0deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	20mm
HF - Functional Height	16mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	3.175mm
H - Shank Height	16mm
B - Shank Width	16mm
ORDCODE	CTFPL 1616H 11
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A1616_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-06 23:33:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TP1103_4
Hand	L

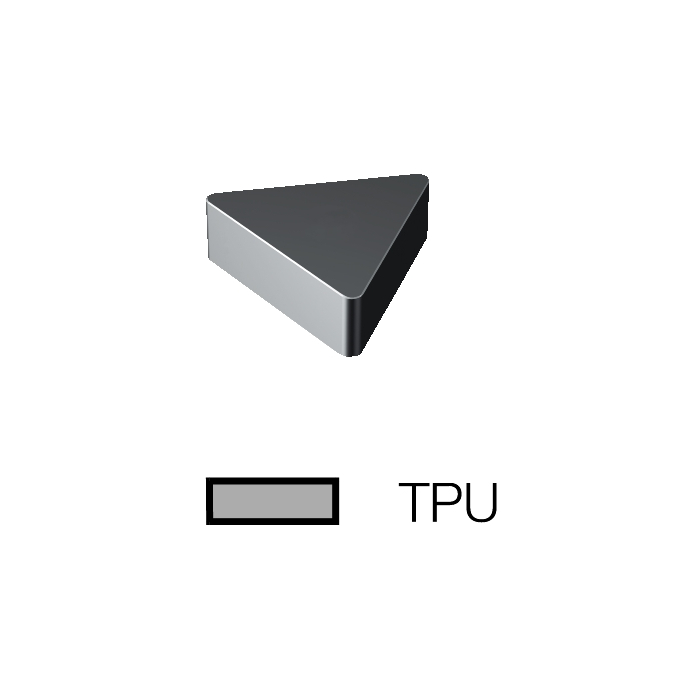

MIID - Master Insert Identification	TPUN 11 03 04
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
