Sandvik Coromant CTGPL 2020K 16 T-Max™ S shank tool for turning

Name: Sandvik Coromant CTGPL 2020K 16 T-Max™ S shank tool for turning
SKU: 5726216
Price: 1906.70 ZAR
Availability: InStock

R 1 906,70 inc. vat

In stock

SKU

5726216

T-Max® S shank tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® S shank tool for turning

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	125mm
TQ - Torque	5Nm
WT - Weight Of Item	417.1g
OAL - Overall Length	125mm
OHX - Maximum Overhang	25.1mm
LSC - Clamping Length	99.9mm
KAPR - Tool Cutting Edge Angle	91deg
RMPX - Maximum Ramping Angle	0deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	25mm
HF - Functional Height	20mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	9.525mm
RE - Corner Radius	0.79375mm
Insert Thickness	3.175mm
H - Shank Height	20mm
B - Shank Width	20mm
ORDCODE	CTGPL 2020K 16
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2020_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-06 23:32:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TP1603_2
Hand	L

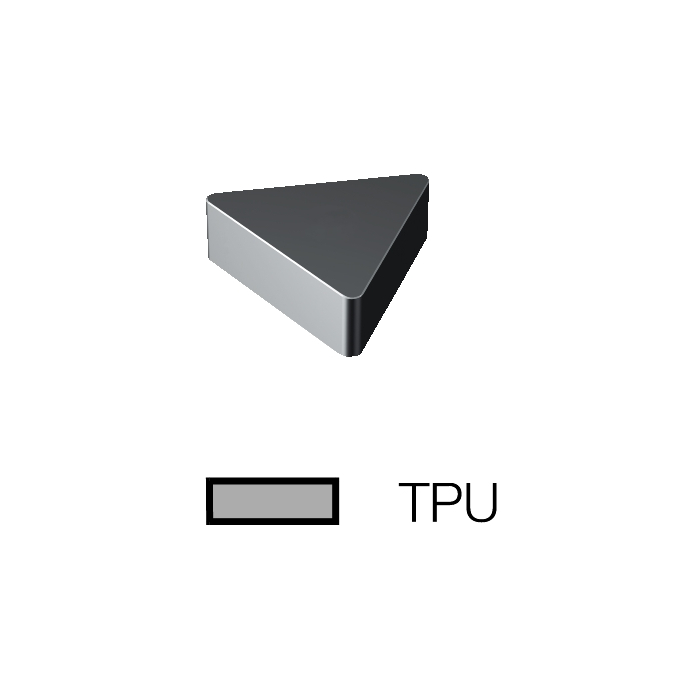

MIID - Master Insert Identification	TPUN 16 03 08
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
